PUSH BUTTON START

id091400205100

Purpose

• By pressing the switch ON/OFF, the push button start notifies the body control module (BCM) of the user power supply switching operation.

Function

Push button start indicator light

• If the push button start indicator light detects the engine switch condition, a malfunction, it indicates the driver by turning on/flashing the light.

START/STOP/ENGINE indicator light

• The push button start turns on the characters to improve visibility of the button.

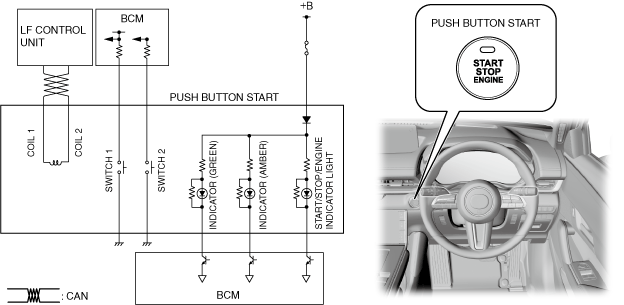

Structure/Construction

• The push button start is installed in the center lower panel.

• Two types of switches are integrated in the push button start.

• The push button start has the following integrated indicators. For the indicator illumination conditions, refer to [PUSH BUTTON START SYSTEM [POWER SUPPLY SWITCHING]]. (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See .PUSH BUTTON START SYSTEM [ADVANCED KEYLESS SYSTEM])

― Push button start indicator light

― START/STOP/ENGINE indicator light

• The push button start has an integrated coil antenna for the immobilizer system. (See COIL ANTENNA.)

a30zzn00001751

Operation

• When the push button start is pressed, switches 1 and 2 turn on (contact point: closed), and when released, it turns off (contact point: open).

Push button start indicator light

Green illumination

• Illuminates if the conditions necessary for engine-start are met.

Green flashing

• Flashes when there is no remote transmitter inside the vehicle.

• Flashes when the steering lock cannot be released.

Amber illumination

• Turns on when the ignition is switched ON (engine off) or to ACC.

Amber flashing

• Flashes when a malfunction is detected.

am3uun00002546

START/STOP/ENGINE indicator light

• START/STOP/ENGINE indicator light turns on in the following cases.

― Door is open/closed

― Headlights are turned on

― Push button start is pressed

― Brake pedal is depressed with ignition switched ON (engine off)

― Ignition is switched

am3uun00002643
