FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400700000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to the front door and lock actuator terminals as indicated in the table below and verify the operation condition.

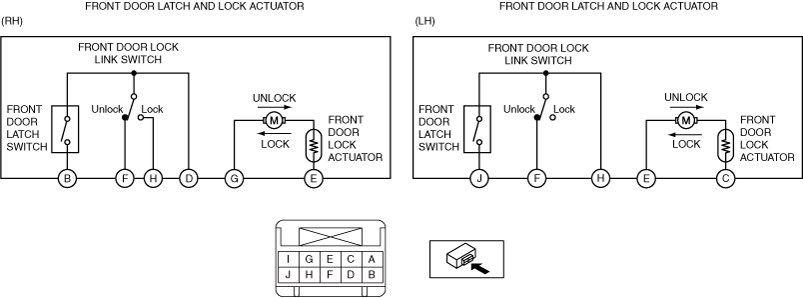

a30zzw00006253

Front door lock actuator	battery terminal	Ground terminal	Operation
RH	G	E	Lock→Unlock
	E	G	Unlock→Lock
LH	E	C	Lock→Unlock
	C	E	Unlock→Lock

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

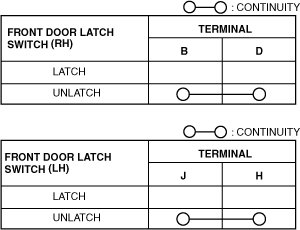

a30zzw00006254

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

Note

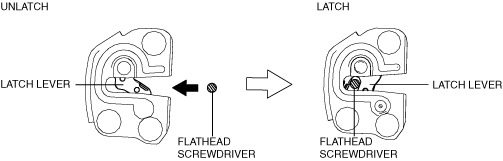

•  When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

ac5jjw00000020

5.  When the front door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

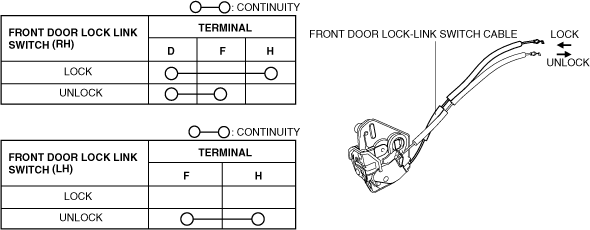

a30zzw00006255

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
