DOOR LOCK SWITCH INSPECTION

id091400700800

Driver's Side

Door Lock Switch Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

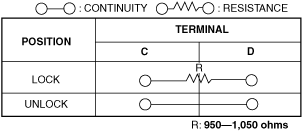

3.  Verify that the continuity is as indicated in the table.

a30zzw00000775

am3zzw00027723

•  If the continuity is not as indicated in the table, replace the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

LED Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to door lock switch terminal A, and connect terminal B to ground.

am3zzw00027724

4.  Verify that the LED is turned on.

•  If the LED does not turn on, replace the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

Liftgate

Door Lock Switch Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

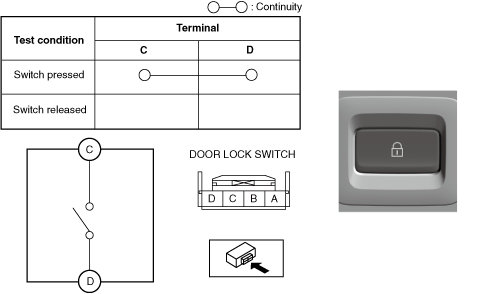

3.   Verify that the resistance and continuity is as indicated in the table.

a30zzw00000776

•   If not as indicated in the table, replace the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

LED Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to door lock switch terminal A, and connect terminal B to ground.

am3zzw00027728

4.  Verify that the LED is turned on.

•  If the LED does not turn on, replace the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)
