SECURITY AND LOCKS


id091400702300


Outline

•  A power door lock system has been adopted in which all doors are locked/unlocked using the door lock switch.
•  A liftgate opener system has been adopted in which the liftgate can be opened just by pressing the liftgate opener switch.
•  A keyless entry system has been adopted in which locking/unlocking is performed by operation of the remote transmitter that is carried and locking/unlocking of the doors.
•  An advanced keyless entry system has been adopted which performs automatic authorization of the remote transmitter that is carried and locking/unlocking of the doors by the remote transmitter or the touch sensor located in outer handle. (With advanced keyless entry system)
•  A push button start system has been adopted that automatically performs authorization of the remote transmitter brought into the vehicle.
•  An immobilizer system has been adopted that only allows remote transmitters that have been previously programmed to the vehicle to start the engine.

Structural View

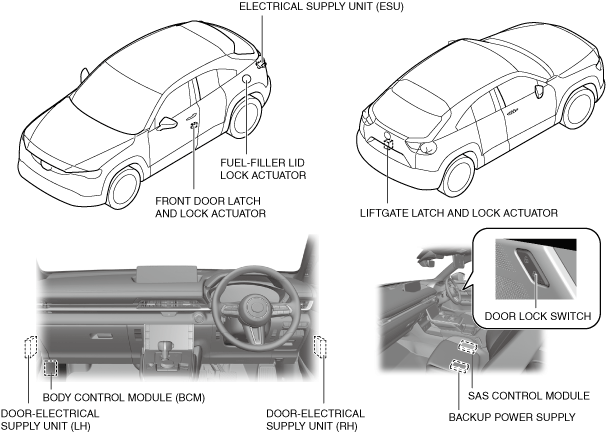

Power door and fuel-filler lid lock system

a30zzn00002037

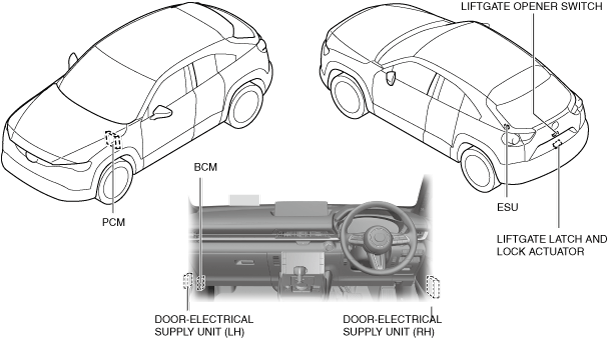

Liftgate opener system

a30zzn00002038

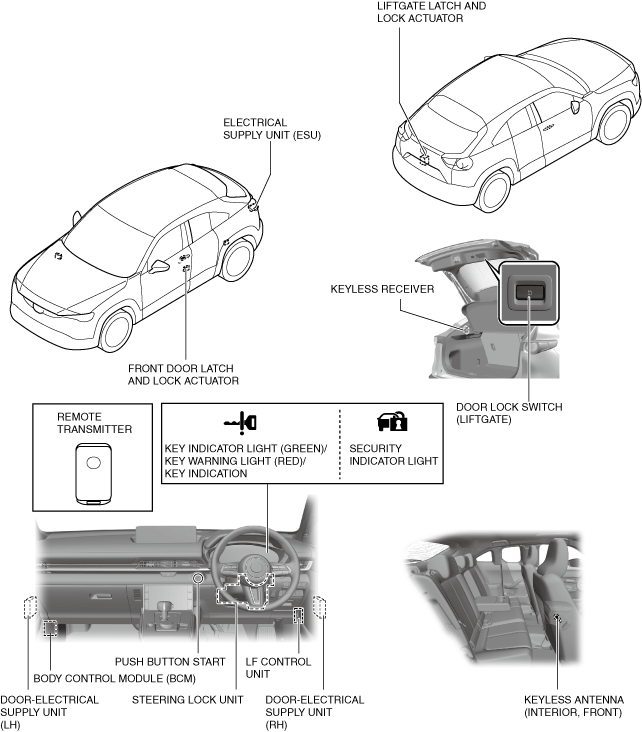

Keyless entry system / Push button start system / Immobilizer system

a30zzn00002039


Advanced keyless entry system / Push button start system / Immobilizer system

a30zzn00002040
