STEERING LOCK UNIT
id091400703600
Purpose
• The steering lock unit locks/unlocks the steering wheel based on the information from the body control module (BCM).
Function
• Locks/unlocks the steering wheel by operating the lock shaft based on the information from the body control module (BCM).

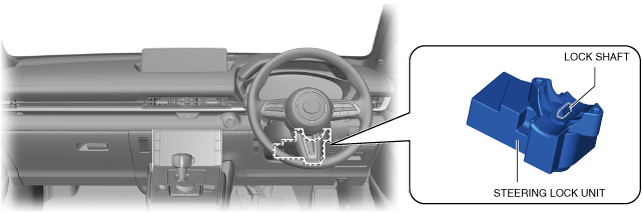

Structural View
System Wiring Diagram
