REMOTE TRANSMITTER
id091400703900
Purpose
• When the lock button/unlock button of the remote transmitter is pressed, ID data and button operation information are transmitted to the keyless receiver.
• When the request signal is received, ID data is sent to the keyless receiver.
Function
• When the remote transmitter sends ID data and button operation, the operation indicator light illuminates.
• To lock the doors, fuel-filler lid and liftgate, press the lock button and the hazard warning lights will flash once.
-
Note
-
• To confirm that all the doors, fuel-filler lid and liftgate have been locked, press the lock button again within 5 seconds.
• To unlock the driver’s door and fuel-filler lid, press the unlock button and the hazard warning lights will flash twice.
-
Note
-
• A beep sound will be heard twice. (With the advanced keyless function)
• A power saving function has been adopted in which the battery power consumption of the remote transmitter can be suppressed by turning off the advanced keyless entry*1 and push button start system functions.
-
Note
-
• After you have turned on the power saving function according to the following procedure, the hazard warning lights and sound operate*1 one time.
-
1. Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.
2. Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
3. Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.
• After you have turned off the power saving function according to the following procedure, the hazard warning lights and sound operate*1 one time.
-
1. Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.
2. Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.
3. Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
*1 :With the advanced keyless function

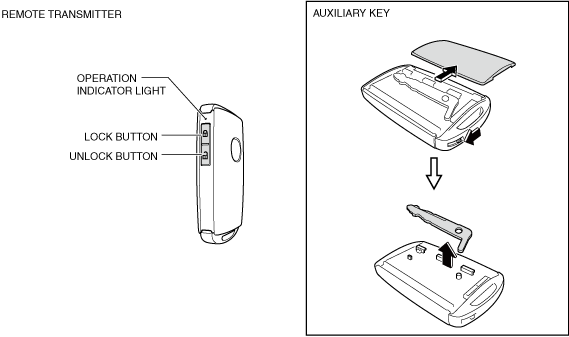

Construction
• The remote transmitter is built into the operation indicator light.
• The remote transmitter secures specific electronic codes (key ID number) built into the electronic communication device (transponder).
• In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked using the auxiliary key.
Operation
• When the remote transmitter button is pressed, ID data and button operation information are transmitted to the keyless receiver using an electromagnetic wave.
• When the request signal is received from the LF antenna (125 kHz), ID data is sent to the keyless receiver using an electromagnetic wave.
