REAR DOOR UPPER LATCH SWITCH INSPECTION

id091400712400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear door upper latch switch. (See REAR DOOR UPPER LATCH REMOVAL/INSTALLATION.)

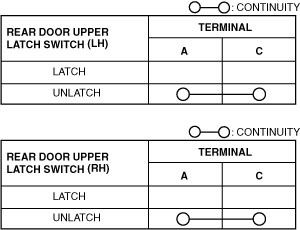

3.  Verify that the continuity is as indicated in the table.

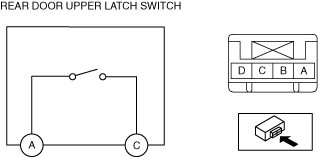

a30zzw00006457

a30zzw00000789

•  If not as indicated in the table, replace the rear door upper latch switch. (See REAR DOOR UPPER LATCH REMOVAL/INSTALLATION.)

Note

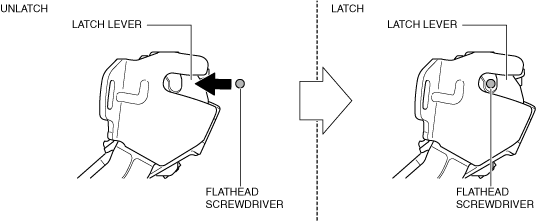

•  When inspecting the latch side of the rear door upper latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

a30zzw00001771
