REAR DOOR LOWER LATCH SWITCH INSPECTION

id091400712500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear door lower latch switch. (See REAR DOOR LOWER LATCH REMOVAL/INSTALLATION.)

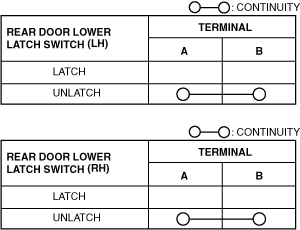

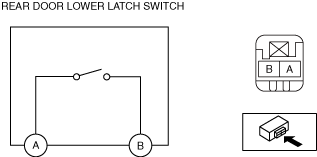

3.  Verify that the continuity is as indicated in the table.

a30zzw00004745

a30zzw00000790

•  If not as indicated in the table, replace the rear door lower latch switch. (See REAR DOOR LOWER LATCH REMOVAL/INSTALLATION.)

Note

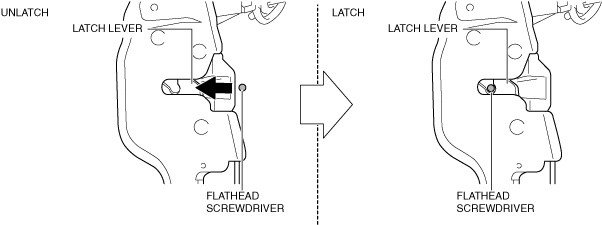

•  When inspecting the latch side of the rear door lower latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

a30zzw00001772
