SUNROOF UNIT DISASSEMBLY/ASSEMBLY

id091500700700

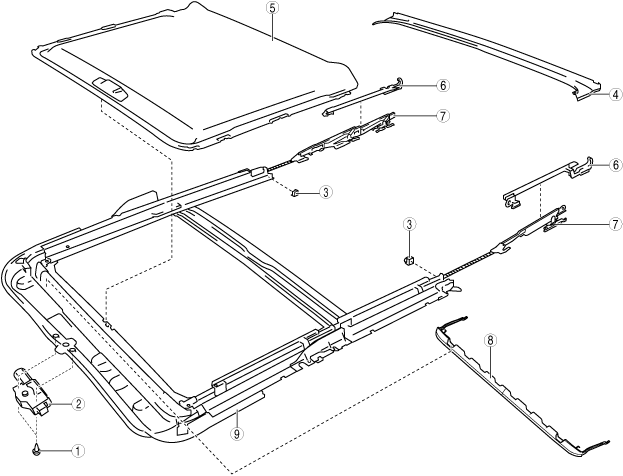

1.  Disassemble the sunroof unit in the order shown in the figure.

am30jw00003661

1	Screw
2	Sunroof motor
3	Rear stopper
4	Drip rail
5	Sunshade (See Sunshade Disassembly Note.)
6	Decoration link (See Decoration Link Installation Note.)
7	Front guide (See Front Guide Disassembly Note.)
8	Deflector
9	Sunroof frame

2.  Assemble in the reverse order of disassembly.

Sunshade Disassembly Note

Caution

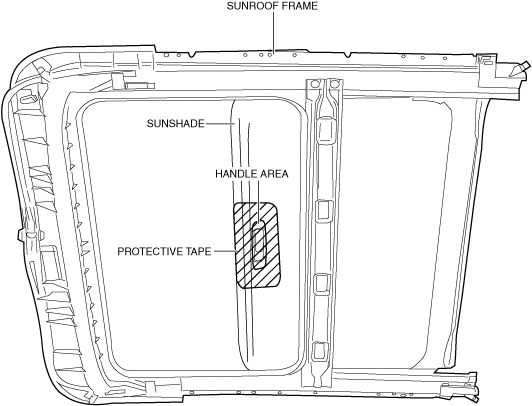

•  The handle may be damaged by the sunshade interfering with the sunroof frame. Apply protective tape to the positions shown in the figure.

a30zzw00000056

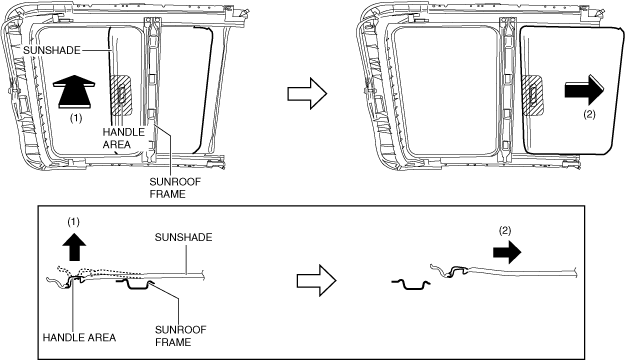

1.  Remove the sunshade while lifting it up in the direction of arrow (1) shown in the figure and sliding it in the direction of arrow (2).

a30zzw00000057

Front Guide Disassembly Note

Caution

•  If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged.

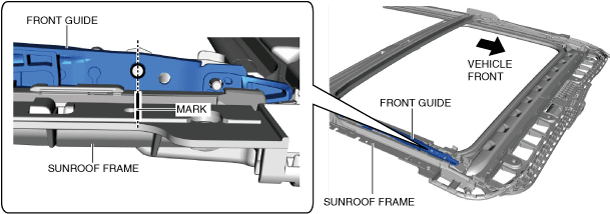

1.  Mark the position shown in the figure for correct positioning.

a30zzw00000058

Decoration Link Installation Note

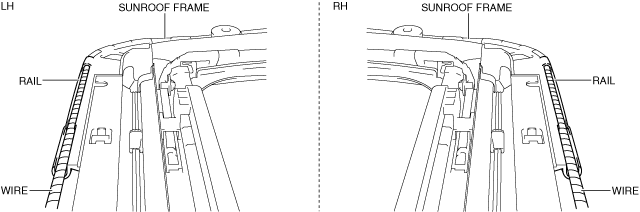

1.  To prevent the wire shown in the figure from coming off the rail, install while aligning the wire in the rail.
