RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600044400

1.  Remove the front camera. (With 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION.)

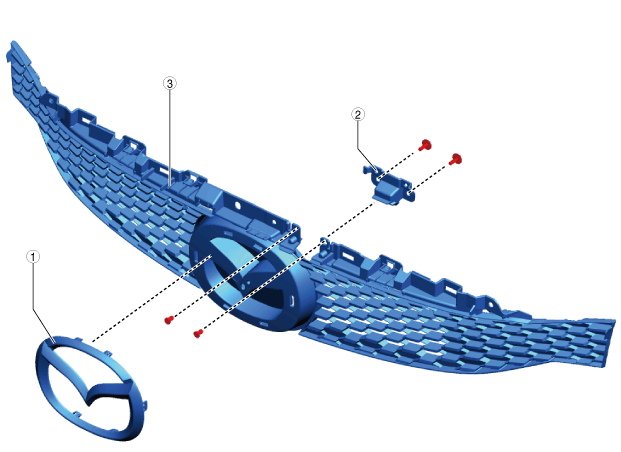

2.  Disassemble in the order shown in the figure.

a30zzw00000614

1	Front center brand emblem
2	Cap (Without 360° view monitor system)
3	Grille mesh

3.  Assemble in the reverse order of disassembly.
