REAR DOOR GARNISH REMOVAL/INSTALLATION

id091600044800

Replacement parts

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

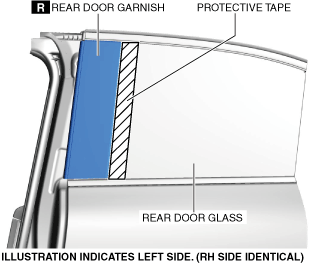

1.  Apply protective tape to the area shown in the figure.

a30zzw00000620

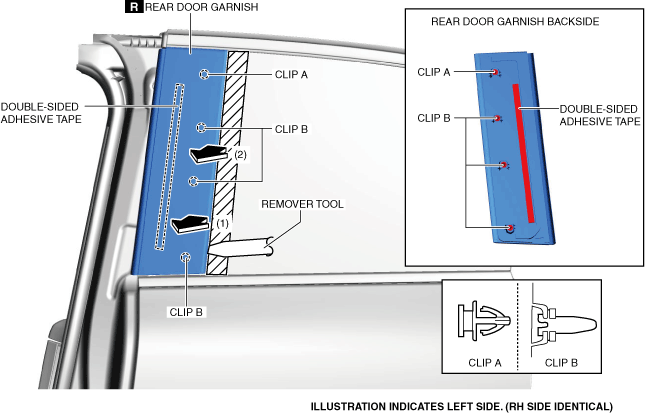

2.  Using the remover tool, remove the clips in the directions shown by arrows (1) and (2).

a30zzw00000621

3.  Using a utility knife, cut off the double-sided adhesive tape at the position shown in the figure, and remove the rear door garnish from the body.

4.  Install in the reverse order of removal. (See Rear Door Garnish Installation Note.)

Rear Door Garnish Installation Note

1.  To install the rear door garnish, perform the following procedure:

(1)  Using a utility knife, remove the double-sided adhesive tape on the body.

(2)  Clean and degrease the area where the double-sided adhesive tape was attached.
