FRONT FENDER MOLDING REMOVAL/INSTALLATION

id091600045100

Removal

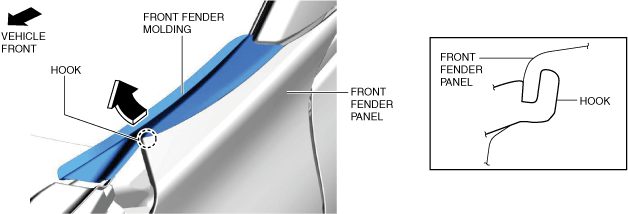

1.  Pull the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.

a30zzw00000627

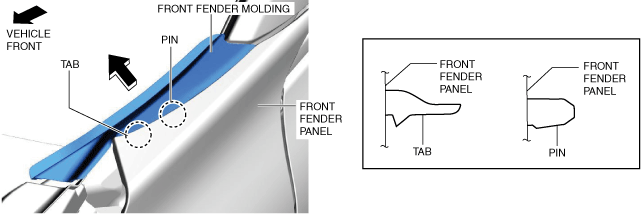

2.  Move the front fender molding in the direction of the arrow shown in the figure and detach the pin and tab.

a30zzw00000628

3.  Pull the front fender molding in the direction of the arrow shown in the figure and remove the front fender molding while detaching the hook.

a30zzw00000629

Installation

1.  Attach the pin and tab.

a30zzw00000630

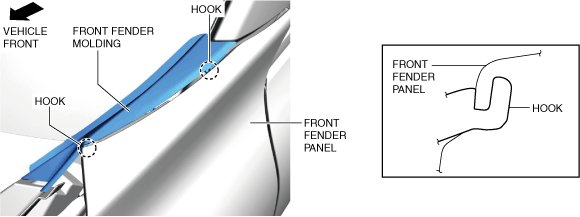

2.  Attach the hooks to the front fender panel and install the front fender molding.

a30zzw00000631
