ROOF MOLDING INSTALLATION

id091600045400

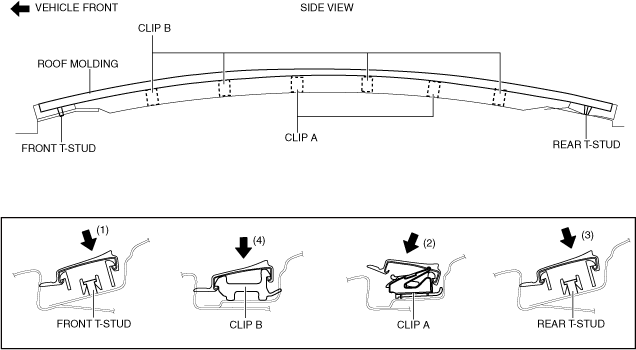

1.  Press the roof molding in the direction of arrow (1) shown in the figure to engage the front T-stud.

a30zzw00000635

2.  Hook the roof molding onto clips A and press the roof molding in the direction of arrow (2) shown in the figure to engage the roof molding with clips A.

3.  Press the roof molding in the direction of arrow (3) shown in the figure to engage the rear T-stud.

4.  Press the roof molding in the direction of the arrow (4) shown in the figure and engage the roof molding with clips B to install it.
