SPLASH SHIELD REMOVAL/INSTALLATION

id091600045600

Front Splash Shield

RH

1.  Lift up the vehicle.

2.  Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

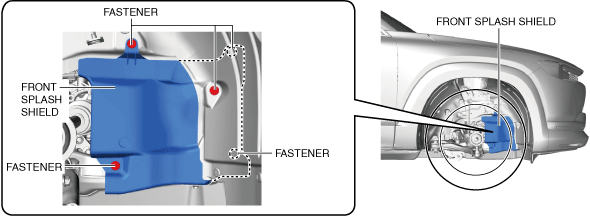

4.  Remove the fasteners.

a30zzw00005654

5.  Remove the front splash shield.

6.  Install in the reverse order of removal.

LH

1.  Lift up the vehicle.

2.  Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

4.  Remove the fasteners.

a30zzw00005655

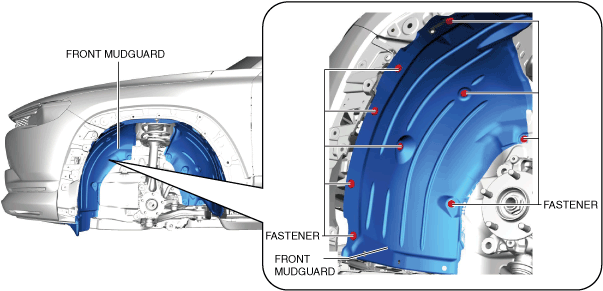

5.  Remove the fasteners.

a30zzw00005656

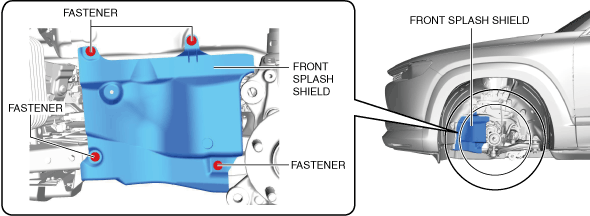

6.  Remove the fasteners.

a30zzw00005657

7.  Remove the front splash shield.

8.  Install in the reverse order of removal.

Rear Splash Shield

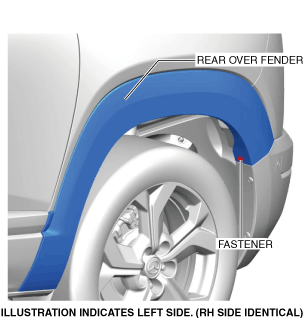

1.  Remove the fasteners.

a30zzw00005658

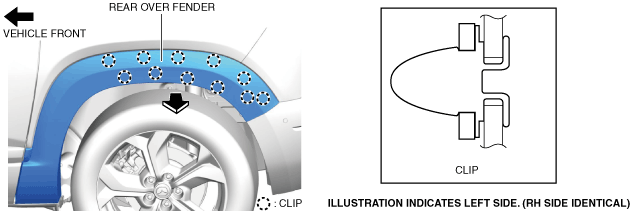

2.  Pull the rear over fender in the direction of the arrow shown in the figure and remove the clips.

a30zzw00005659

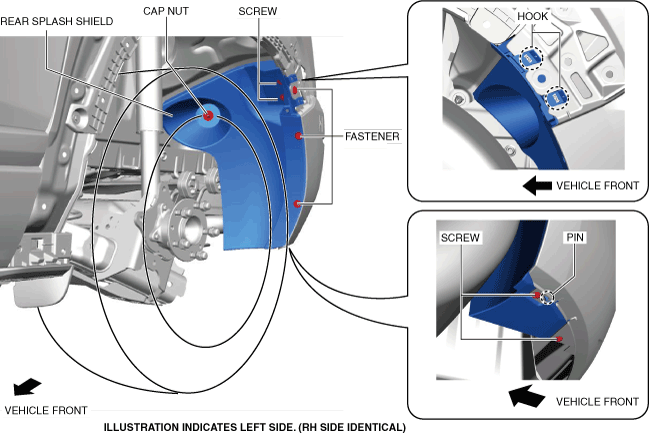

3.  Remove the screws, fasteners, and cap nut.

a30zzw00005660

4.  Remove the hooks.

5.  While pulling out the pin, remove the rear splash shield.

6.  Install in the reverse order of removal.
