FRONT UNDER COVER No.1 REMOVAL/INSTALLATION

id091600046000

1.  Lift up the vehicle.

2.  Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the screws.

a30zzw00005675

4.  Remove the fasteners.

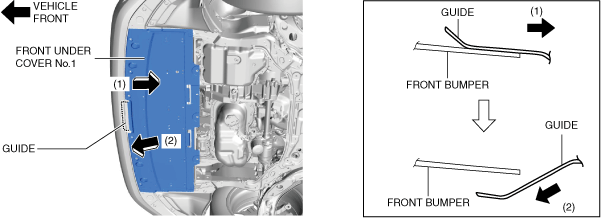

5.  Move front under cover No.1 in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guide.

a30zzw00005676

6.  Install in the reverse order of removal.
