FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600046200

Floor Under Cover No.1

1.  Lift up the vehicle.

2.  Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the gusset. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

4.  Remove the bolts.

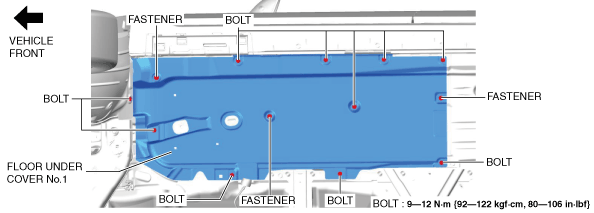

LH

a30zzw00005687

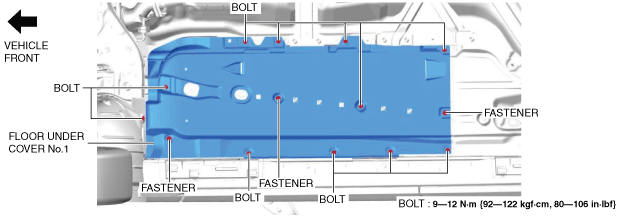

RH

a30zzw00005688

5.  Remove the fasteners.

6.  Remove floor under cover No.1.

7.  Install in the reverse order of removal.

Floor Under Cover No.2

1.  Lift up the vehicle.

2.  Remove the bolts.

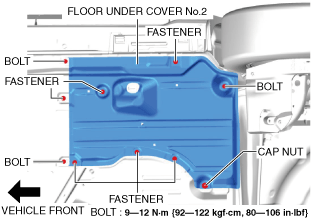

LH

a30zzw00005689

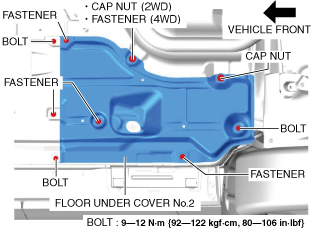

RH

a30zzw00005690

3.  Remove the fasteners.

4.  Remove the cap nuts.

5.  Remove floor under cover No.2.

6.  When removing the bracket, perform the following procedure (2WD) (RH only) :

(1)  Remove the nuts.

a30zzw00005691

(2)  Remove the bracket.

7.  Install in the reverse order of removal.
