REAR DOOR UPPER TRIM REMOVAL/INSTALLATION

id091700049900

1.  Remove the front seat belt upper anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION.)

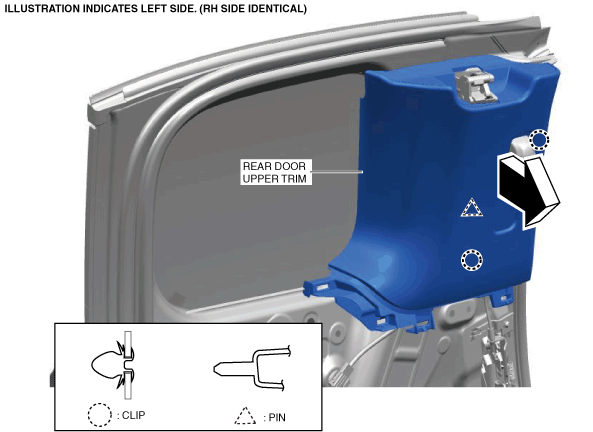

3.  Move the rear door upper trim in the direction of the arrow shown in the figure and remove the clips and pin.

a30zzw00000347

4.  Remove the rear door upper trim.

5.  Install in the reverse order of removal.
