TRUNK BOARD REMOVAL/INSTALLATION

id091700051200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

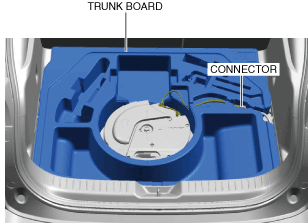

3.  Disconnect the connector. (with Bass-box)

a30zzw00005765

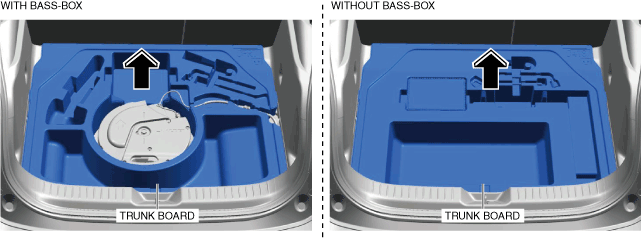

4.  Remove the front trunk board in the direction of the arrow shown in the figure.

a30zzw00005766

5.  Install in the reverse order of removal.
