ROOF SIDE TRIM REMOVAL/INSTALLATION

id091700051900

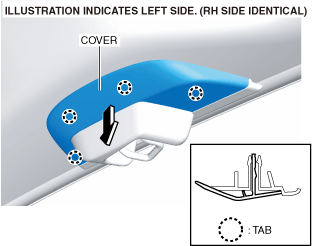

1.  Move the cover in the direction of the arrow shown in the figure and detach the tabs from the roof side trim.

a30zzw00003783

2.  Move the roof side trim in the direction of the arrow shown in the figure and remove the tabs and guide.

a30zzw00003784

3.  Remove the roof side trim.

4.  Install in the reverse order of removal.
