FOOT SUPPORT REMOVAL/INSTALLATION

id091700052400

1.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

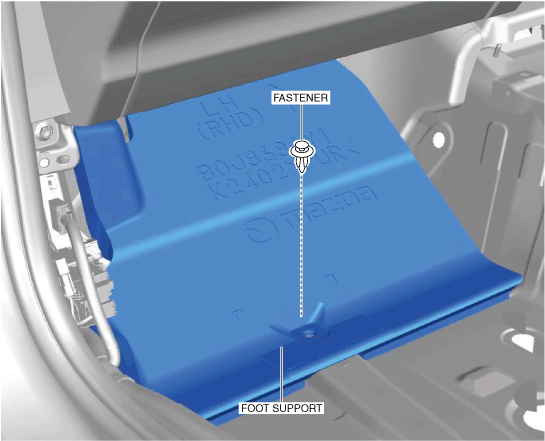

3.  Remove the fastener.

a30zzw00005815

4.  Remove the foot support.

5.  Install in the reverse order of removal.
