REAR MAP LIGHT INSPECTION

id091800705000

With Rear Map Light Switch

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION.)

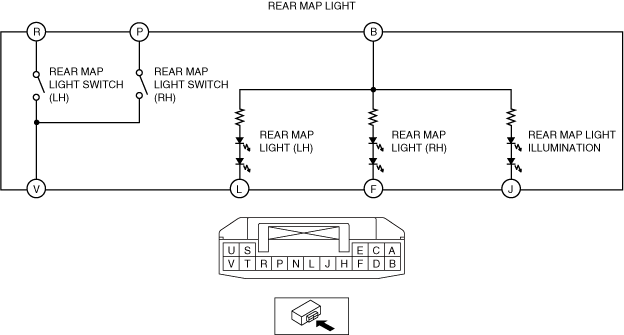

3.  Apply battery positive voltage and connect the ground to the rear map light terminals as indicated in the table below and verify that each light turns on normally.

a30zzw00001739

B+ terminal	Ground terminal	Condition
		Rear map light (LH)	Rear map light (RH)	Rear map light illumination
B	L	Turns ON	Turns OFF	Turns OFF
B	F	Turns OFF	Turns ON	Turns OFF
B	J	Turns OFF	Turns OFF	Turns ON

a30zzw00001740

•  If the LED does not turn on, replace the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the rear map light terminals is as indicated in the table.

•  If not as indicated in the table, replace the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION.)

Without Rear Map Light Switch

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to the rear map light terminals as indicated in the table below and verify that each light turns on normally.

a30zzw00001741

B+ terminal	Ground terminal	Condition
		Rear map light
A	D	Turns ON

•  If the LED does not turn on, replace the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION.)
