RUNNING LIGHT SYSTEM

id091800705600

Outline

• The running light system automatically turns on the running lights while the vehicle is driven.

Function

• The body control module (BCM) controls the running light system according to the vehicle conditions.

—: Not applicable

Vehicle speed	Ignition switch	Parking brake	Selector lever position	Light switch position	Dimmer switch position	Auto light system	Running light
3 km/h {2 mph} or more	ON (engine on)	Release	Except P position	OFF	HI	—	Illuminated
					LO		Illuminated
					FLASH-TO-PASS		—
				AUTO	HI	Off	Illuminated
					HI	On	—
					LO	Off	Illuminated
					LO	On	—
					FLASH-TO-PASS	Off	—
					FLASH-TO-PASS	On	—
				TNS (parking lights)	HI	—	Illuminated
					LO		Illuminated
					FLASH-TO-PASS		Illuminated
				HEAD	HI	—	—
					LO		—
					FLASH-TO-PASS		—

Personalization features

• The running light system can be switched between operable and inoperable (initial setting is [On]). For details on the personalization features, refer to the [PERSONALIZATION FEATURES] in the workshop manual.

Structure/Construction

System structure

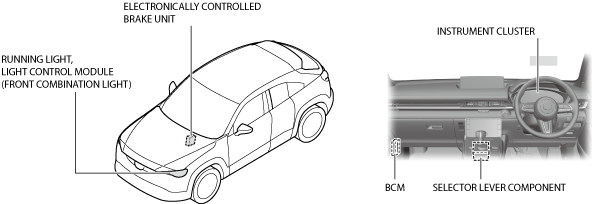

a30zzn00001847

System wiring diagram

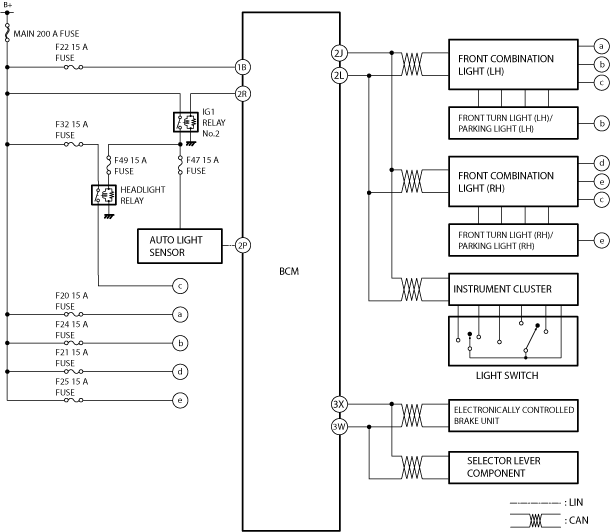

a30zzn00001848

Operation

Operation conditions

• When all of the following operation conditions are met, the body control module (BCM) activates the running light system.

― Vehicle speed: 3 km/h {2 mph} or more (vehicle speed signal)

― Ignition switched ON (engine on) (ignition switch condition signal)

― Parking brake: Released (parking brake switch signal)

― Selector lever position: Except P position (selector lever position signal)

― Light switch position: OFF, AUTO (auto light system not operated), or TNS (parking lights) (light switch position signal)

Operation

1. When all of the following operation conditions are met (1), the body control module (BCM) transmits (2) running light on request signal to light control module.

2. When the light control module receives the running light on request signal, the light control module turns the running light on (3).

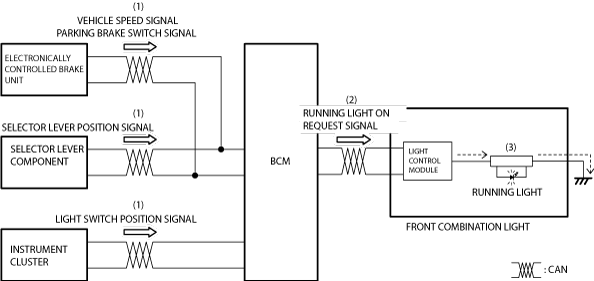

a30zzn00001849
