AUTO LIGHT SYSTEM

id091800706900


Outline

•  The auto light system automatically turns the TNS (parking lights), headlight, and panel light on/off according to the illumination level above and in front of the vehicle.

Function

•  The body control module (BCM) turns each light on/off based on the signal from the auto light sensor.
Note
•  Each light turns on/off as follows.

engine switch condition

ACC or OFF

ON

Light switch position

OFF*1

AUTO

TNS (parking lights)

HEAD

OFF*1

AUTO

TNS (parking lights)

HEAD
Headlight
Not illuminated
Not illuminated
Not illuminated
Not illuminated
Automatically turns on/off*2*4
Automatically turns on/off*3*4
Illuminated
Running light
Not illuminated
Not illuminated
Not illuminated
Not illuminated
Not illuminated
TNS (parking lights)
Not illuminated
Not illuminated
Illuminated
Not illuminated
Illuminated

*1  :The light switch automatically returns to the AUTO position.
*2  :When the surrounding area is bright the running lights turn on, when the surrounding area is dark the headlights and TNS (parking lights) turn on.
*3  :When the surrounding area is bright the running lights and TNS (parking lights) turn on, when the surrounding area is dark the headlights and TNS (parking lights) turn on.
*4  :When the light switch is switched to OFF while the vehicle is stopped, all illuminated lights turn off. When the light switch is switched from a position other than TNS (parking lights) to the TNS (parking lights) position, the running lights or headlights turn off. The lights that were turned off turn on again when the vehicle starts to accelerate.

Auto wiper interlocking auto light function

•  When the body control module (BCM) receives a windshield wiper LO or HI operation request signal for 10 s or more from the auto light sensor/rain sensor, it turns on the headlights and TNS (parking lights).


Structure/Construction


System structure

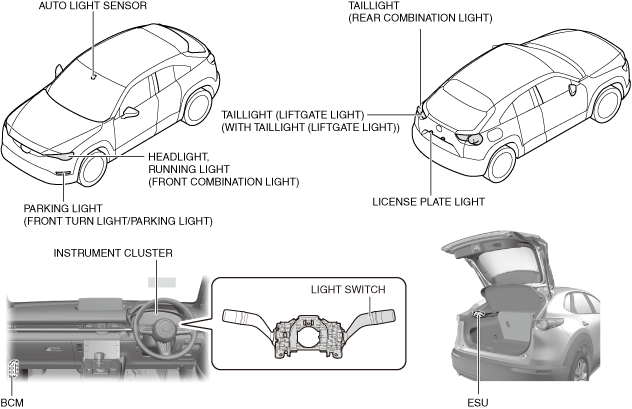

a30zzn00001876


System wiring diagram

a30zzn00001877
a30zzn00001878


Operation

Note
•  When the ignition is switched ON (engine on or off), the auto light sensor detects the illumination level above and in front of the vehicle regardless of the light switch position.
•  The illumination level sensitivity of the auto light sensor can be changed. Refer to the [PERSONALIZATION FEATURES] in the workshop manual.

Light on operation

1.  The instrument cluster detects a light switch status signal (1).

2.  The instrument cluster sends the light switch status signal (2) to the body control module (BCM) via CAN communication.

3.  The auto light sensor determines (3) the headlight on/off from a change in the illumination level outside of the vehicle, it sends (4) a panel light on request signal, TNS on request signal, and a headlight on request signal to the body control module (BCM) via LIN communication.

4.  When the body control module (BCM) receives the light switch status signal (AUTO or TNS) and the headlight on request signal with the ignition switched ON (engine off or on), it turns the headlights LO or HI on (5). In addition, an auto-light on condition is set so that the headlights turn on at twilight.

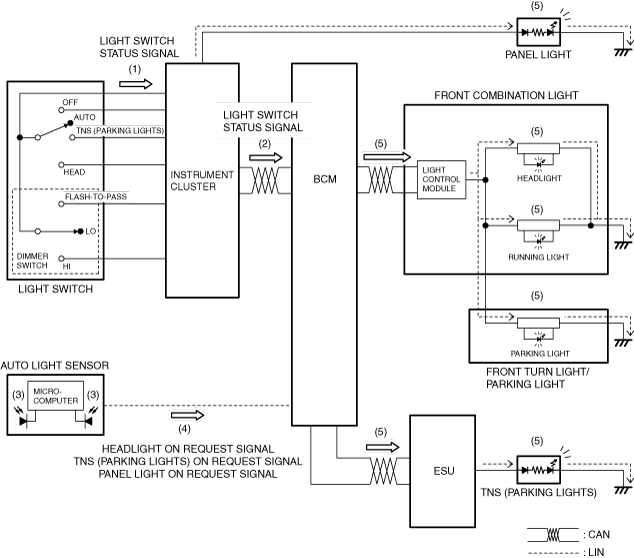

a30zzn00001879


Light off operation

1.  The instrument cluster detects a light switch status signal (1).

2.  The instrument cluster sends the light switch status signal (2) to the body control module (BCM) via CAN communication.

3.  The auto light sensor determines (3) the headlight on/off from a change in the illumination level outside of the vehicle, it sends (4) a panel light off request signal, TNS off request signal, and a headlight off request signal to the body control module (BCM) via LIN communication.

4.  When the body control module (BCM) receives the light switch status signal (AUTO or TNS) and the headlight off request signal with the ignition switched ON (engine off or on), it turns the headlights LO or HI off (5). In addition, to prevent the headlights from being frequently switched on/off, an auto-light on condition is set with the threshold of the illumination level for turning off set higher than the illumination level for turning on.

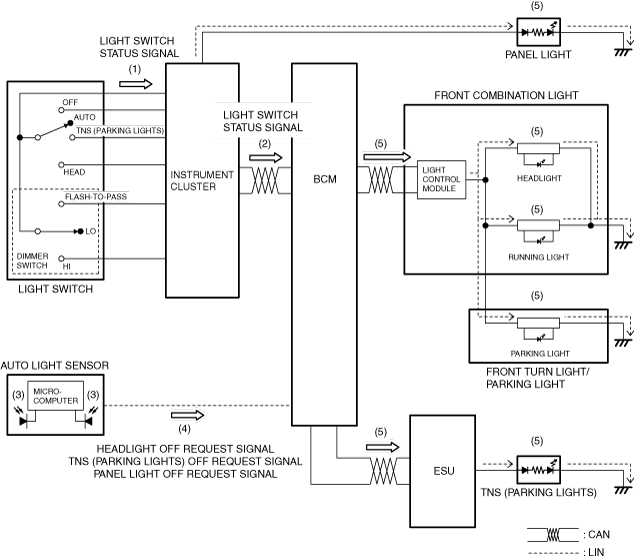

a30zzn00001880
