WARNING/INDICATION/ALARM [LIGHTING SYSTEMS]

id091800707900

Exterior Light Warning Light/Exterior Light Warning Indication

Purpose

• The exterior light warning light/exterior light warning indication notifies the driver the following conditions:

― Headlight auto leveling system non-initialization

― Headlight auto leveling system malfunction

― Exterior light malfunction

Function

• The instrument cluster turns on/flashes/displays the exterior light warning light/exterior light warning indication based on the following signals:

Signal name

Sending module/part name

Communication method

Exterior light warning light operation status

Headlight auto leveling system non-initialization signal

Auto leveling control module/adaptive LED headlights control module

CAN

Flash

Headlight auto leveling system malfunction signal

On

Exterior light malfunction signal

Body control module (BCM)

On

Signal name	Sending module/part name	Communication method	Exterior light warning light operation status
Headlight auto leveling system non-initialization signal	Auto leveling control module/adaptive LED headlights control module	CAN	Flash
Headlight auto leveling system malfunction signal	On
Exterior light malfunction signal	Body control module (BCM)	On

• The flash pattern of the exterior light warning light is as shown in the figure.

a30zzn00000429

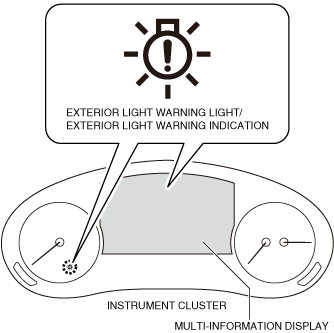

Structure/Construction

• The exterior light warning light is built into the instrument cluster.

• The exterior light warning indication is displayed in the multi-information display of the instrument cluster.

a30zzn00000430

Operation

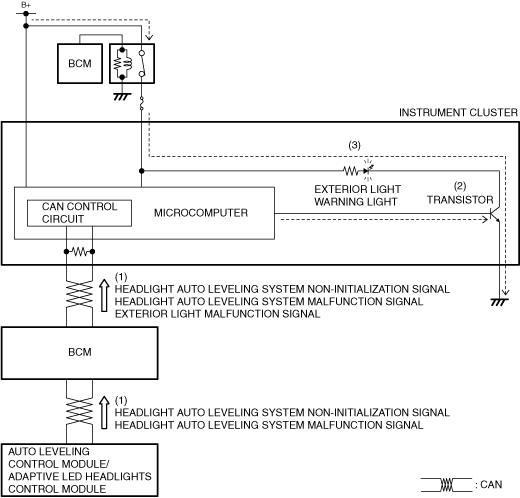

Exterior light warning light

1. When the auto leveling control module/adaptive LED headlights control module or body control module (BCM) detects a malfunction with the ignition switched ON (engine off or on), it sends (1) any of the following signals to the instrument cluster via CAN communication.

― Headlight auto leveling system non-initialization signal

― Headlight auto leveling system malfunction signal

― Exterior light malfunction signal

2. The instrument cluster turns the transistor on (2) based on each signal.

3. When the transistor turns on intermittently, the exterior light warning light flashes (3), and when the transistor is on continuously, the exterior light warning light turns on (3).

a30zzn00001905

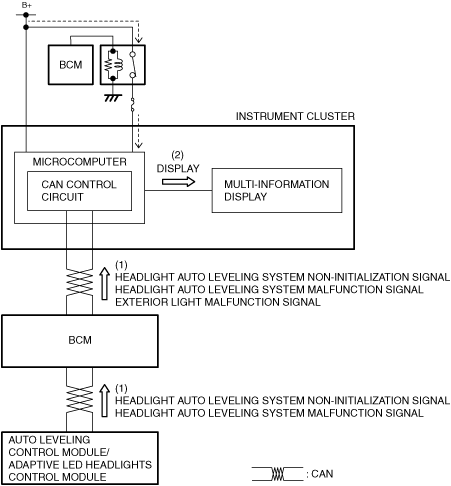

Exterior light warning indication

1. The instrument cluster receives (1) the following signals from the auto leveling control module/adaptive LED headlights control module or body control module (BCM) via CAN communication with the ignition switched ON (engine off or on), it displays (2) the exterior light warning indication in the multi-information display.

― Headlight auto leveling system non-initialization signal

― Headlight auto leveling system malfunction signal

― Exterior light malfunction signal

a30zzn00001906

Turn Signal/Hazard Warning Indicator Lights

Purpose

• The turn signal/hazard warning indicator lights notify the driver that the turn lights are flashing.

Function

• When the instrument cluster receives a turn signal/hazard warning indicator lights on signal sent from the body control module (BCM) via CAN communication, it flashes the turn signal/hazard warning indicator lights.

Note

• If a turn light is burned out, the turn signal/hazard warning indicator lights flashing speed increases.

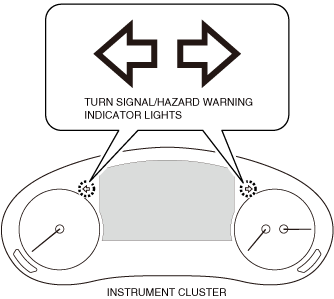

Structure/Construction

• The turn signal/hazard warning indicator lights are built into the instrument cluster.

a30zzn00000433

Operation

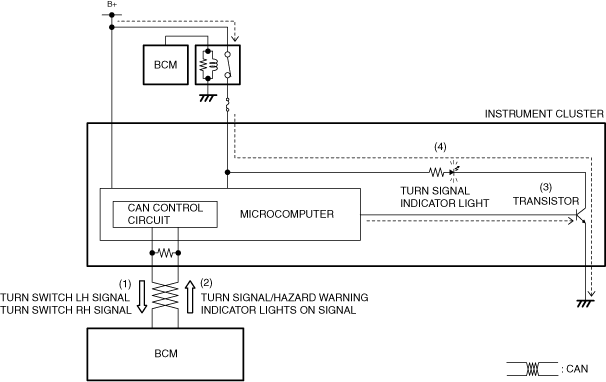

Turn signal indicator light

1. When the turn switch is in the LH or RH position, the instrument cluster sends (1) a turn switch LH signal or turn switch RH signal to the body control module (BCM) via CAN communication.

2. When the body control module (BCM) receives the turn switch LH signal or turn switch RH signal with the ignition switched ON (engine off or on), it sends (2) the signal to the instrument cluster as a turn signal/hazard warning indicator lights on signal.

3. The instrument cluster turns the transistor on (3) intermittently based on the turn signal/hazard warning indicator lights on signal.

4. When the transistor turns on intermittently, the turn signal indicator light flashes (4).

a30zzn00001907

Hazard warning indicator light

1. When the hazard warning switch turns on, the climate control unit sends (1) a hazard warning switch on signal to the body control module (BCM) via CAN communication.

2. When the body control module (BCM) receives the hazard warning switch on signal, it sends (2) the signal to the instrument cluster as a turn signal/hazard warning indicator lights on signal.

3. The instrument cluster turns the transistor on (3) intermittently based on the turn signal/hazard warning indicator lights on signal.

4. When the transistor turns on intermittently, the hazard warning indicator light flashes (4).

a30zzn00001908

Lights-on Indicator Light/Lights-on Indication

Purpose

• The lights-on indicator light/lights-on indication notifies the driver that the TNS (parking lights) is turned on.

Function

• When the instrument cluster receives the lights-on indicator light on signal sent from the body control module (BCM) via CAN communication, it turns on/displays the lights-on indicator light/lights-on indication.

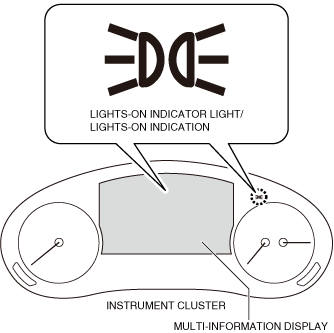

Structure/Construction

• The lights-on indicator light is built into the instrument cluster.

• The lights-on indication is displayed in the multi-information display of the instrument cluster.

a30zzn00000437

Operation

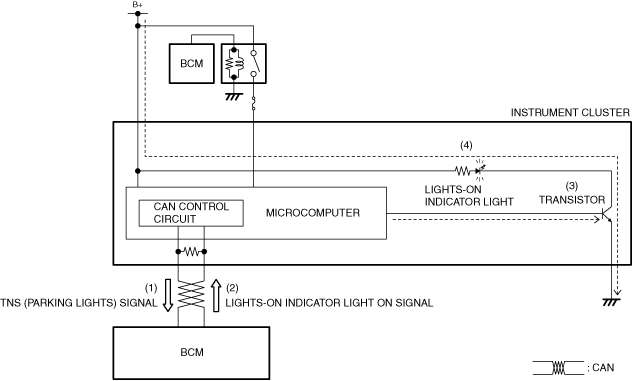

Lights-on indicator light

1. When the light switch is in the TNS (parking lights) position, the instrument cluster sends (1) a TNS (parking lights) signal to the body control module (BCM) via CAN communication.

2. The body control module (BCM) sends (2) a lights-on indicator light on signal to the instrument cluster.

3. The instrument cluster turns the transistor on (3) based on the lights-on indicator light on signal.

4. When the transistor turns on, a ground circuit with the lights-on indicator light is established and the lights-on indicator light turns on (4).

a30zzn00001909

Lights-on indication

1. The instrument cluster receives (1) the lights-on indicator light on signal from the body control module (BCM) via CAN communication, it displays (2) the lights-on indication in the multi-information display.

a30zzn00001910

Headlight High-beam Indicator Light

Purpose

• The headlight high-beam indicator light notifies the driver that the headlights HI are turned on.

Function

• When the instrument cluster receives the headlight HI on signal sent from the body control module (BCM) via CAN communication, it turns the headlight high-beam indicator light on.

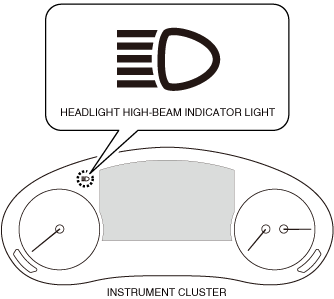

Structure/Construction

• The headlight high-beam indicator light is built into the instrument cluster.

a30zzn00000440

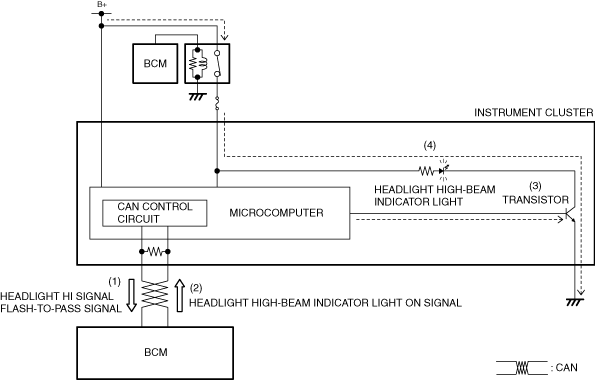

Operation

1. When the light switch is in any of the following positions, the instrument cluster sends (1) a headlight HI signal or flash-to-pass signal to the body control module (BCM) via CAN communication.

― Light switch at HEAD position and dimmer switch at HI position

― Dimmer switch at FLASH-TO-PASS position

2. When the body control module (BCM) receives the headlight HI signal or flash-to-pass signal with the ignition switched ON (engine off or on), it sends (2) a headlight high-beam indicator light on signal to the instrument cluster.

3. The instrument cluster turns the transistor on (3) based on the headlight high-beam indicator light on signal.

4. When the transistor turns on, a ground circuit with the headlight high-beam indicator light is established, and the headlight high-beam indicator light turns on (4).

a30zzn00001911
