WASHER MOTOR REMOVAL/INSTALLATION

id091900700700

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)

(3)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

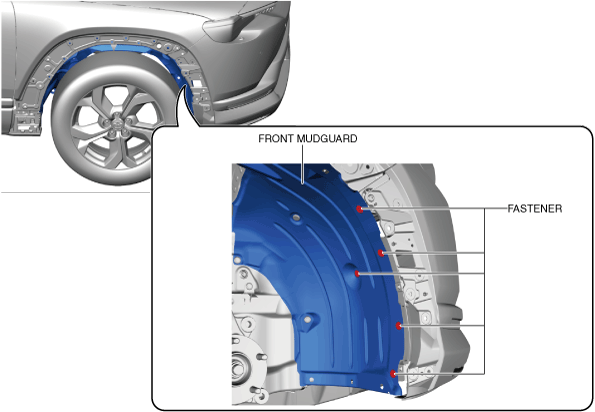

a30zzw00003846

4.  Set the front mudguard (RH) aside.

5.  Disconnect the connector.

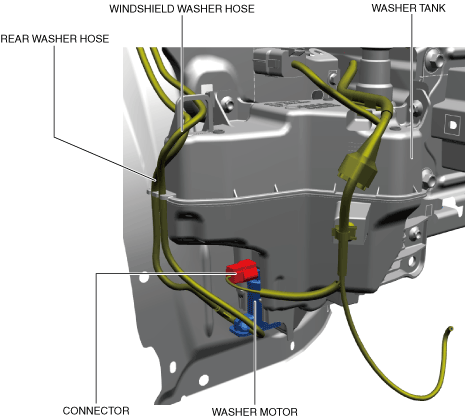

a30zzw00006488

6.  Disconnect the washer hose from the washer motor.

7.  Remove the washer motor in the direction of arrow shown in the figure.

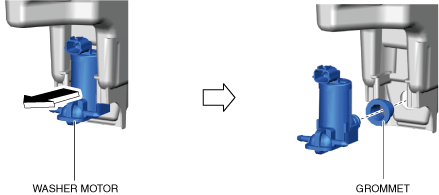

a30zzw00003848

8.  Remove the grommet.

9.  Install in the reverse order of removal.
