WINDSHIELD WASHER NOZZLE ADJUSTMENT

id091900700900

Caution

•  If the nozzle angle is adjusted with excessive force by inserting a needle or similar thin tool into the injection nozzle, it could damage the nozzle internally. When adjusting the nozzle, be careful not to apply excessive force.

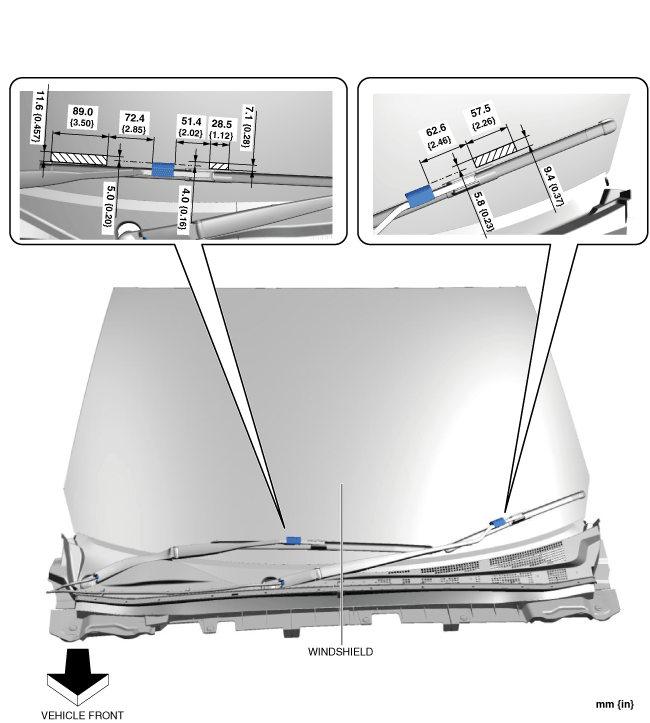

1.  Insert a needle or similar thin tool into the injection nozzle of the windshield washer nozzle and adjust the area where washer fluid is sprayed as shown in the figure.

a30zzw00006334

a30zzw00006226
