WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900701100

Windshield Washer Hose A

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)

(3)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

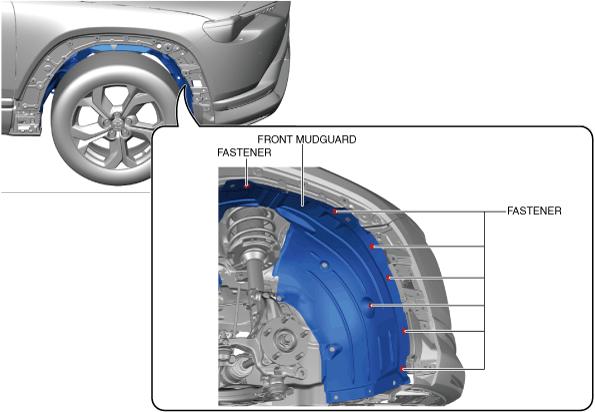

a30zzw00006350

4.  Set the front mudguard (RH) aside.

5.  Disconnect the windshield washer hose A from the washer motor.

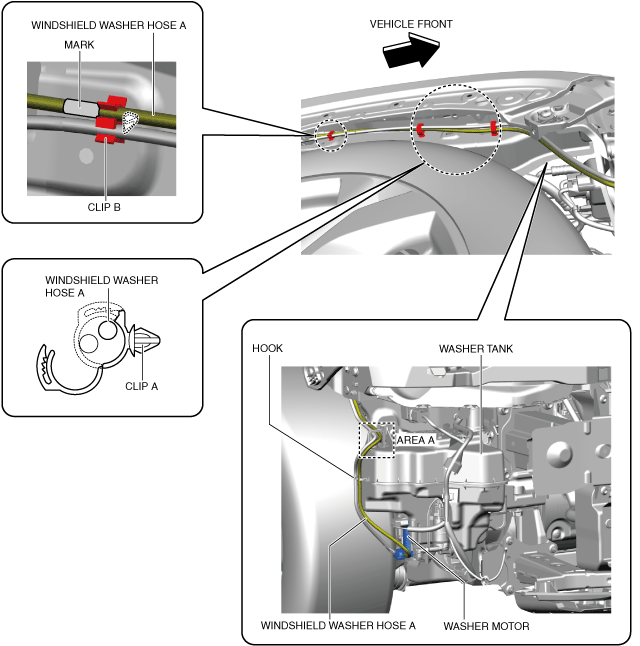

a30zzw00006351

6.  Remove the windshield washer hose A from the washer tank hook. (See Windshield washer hose A installation note.)

7.  Pull out the windshield washer hose A from area A of the washer tank.

8.  Remove the windshield washer hose A from the clips A and B.

9.  Disconnect the windshield washer hose A from the joint pipe A.

a30zzw00006352

10.  Remove the windshield washer hose A.

11.  Install in the reverse order of removal.

Windshield washer hose A installation note

•  When installing windshield washer hose A to the washer tank hook, align the hook with the upper part of the gray mark and install.

a30zzw00006353

Windshield Washer Hose B and C

1.  Disconnect the windshield washer hose B and C from the joint pipe A.

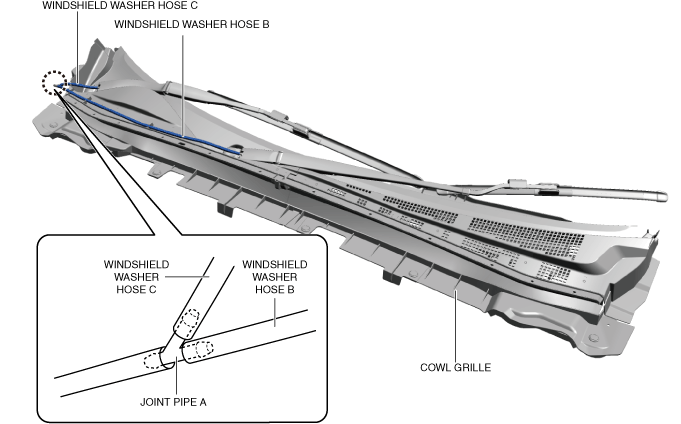

a30zzw00006354

2.  Disconnect the windshield washer hose B and C from the joint pipe B and C.

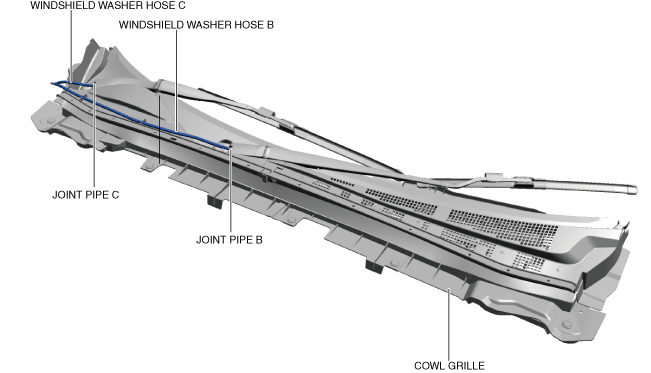

a30zzw00006355

3.  Remove the windshield washer hose B and C from the hooks.

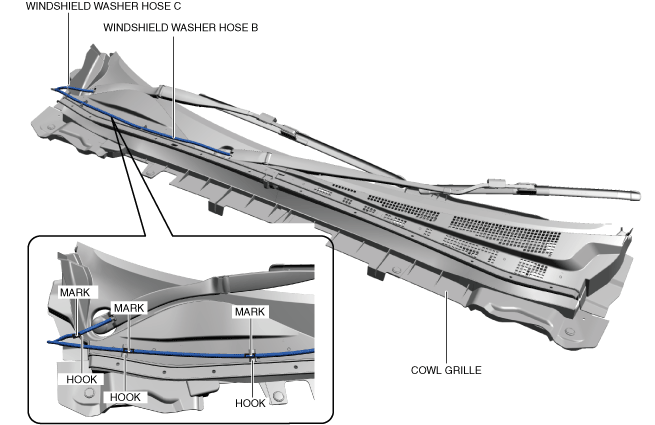

a30zzw00006356

4.  Install in the reverse order of removal.
