WIPER AND WASHER SWITCH INSPECTION

id091900702700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

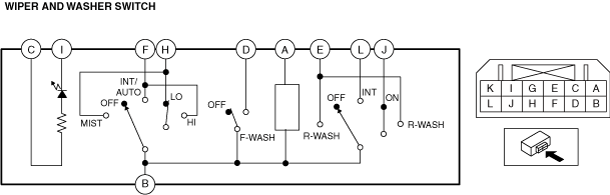

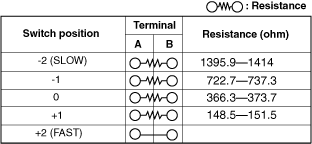

3.  Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.

a30zzw00006366

a30zzw00006367

a30zzw00006368

a30zzw00006505

a30zzw00006506

•  If the continuity is not as indicated in the table, replace the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
