WIPER/WASHER SYSTEM
id091900703200
Outline
• The following wiper/washer system has been adopted.
-
― Windshield wiper/washer system
― Auto wiper system
Specification
-
Note
-
• To operate the windshield wipers normally, performing the initial setting for the windshield wiper positions is required. Refer to [WINDSHIELD WIPER ARM AND BLADE INITIAL SETTING] in the workshop manual.
• A windshield wiper/washer system with continuous (low/high), auto-stop, one-touch wiper, intermittent wiper (without auto wiper system), and a windshield washer and synchronized washer have been adopted.
-
― LIN communication has been adopted for the windshield wiper/washer system.
― Windshield washer nozzles have been adopted in which the area where the washer fluid is sprayed can be adjusted.
• An auto wiper system has been adopted which enables fully automatic windshield wiper operation. (With auto wiper system)
-
― LIN communication has been adopted for the auto wiper system.
― A rain sensor integrated with the lens has been adopted which aggregates infrared light to detect the amount of rainfall.
― Auto wiper system personalization features have been adopted.
• Washer tank capacity
-
― 2.2 L {2.3 US qt, 1.9 Imp qt}
Structure/Construction

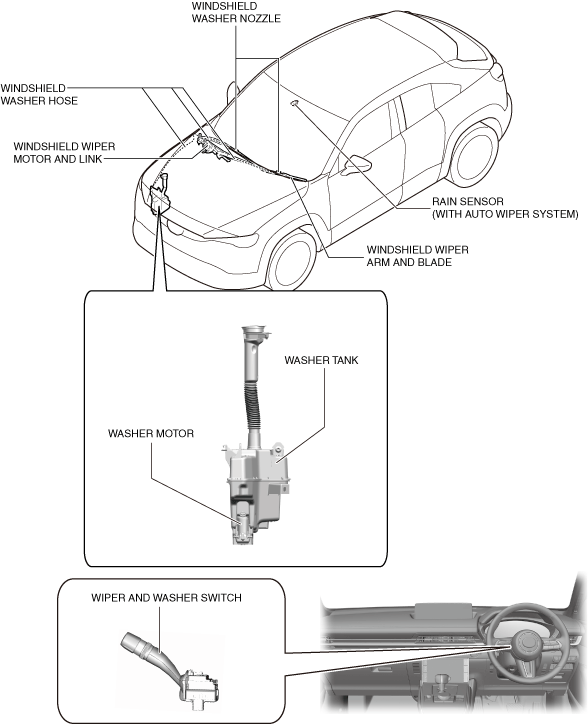

System structure
