TWEETER REMOVAL/INSTALLATION

id092000701500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

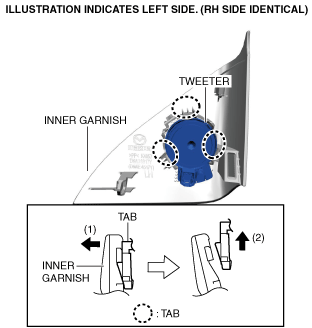

3.  Move the inner garnish in the order of arrows (1) and (2) shown in the figure to release the tabs.

a30zzw00000377

4.  Remove the tweeter from the inner garnish.

5.  Install in the reverse order of removal.
