BASS-BOX REMOVAL/INSTALLATION

id092000701600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

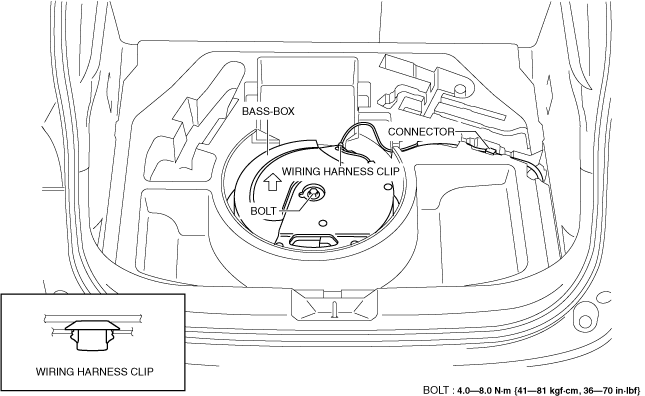

a30zzw00005825

4.  Remove the wiring harness clip.

5.  Remove the bolt.

6.  Remove the bass box.

7.  Install in the reverse order of removal.
