POWER SYSTEMS

id092100701200


Outline

•  System in which electric current from the battery supplies power to each electrical part.
•  There are mainly three types of electric power supply as follows, which are divided into system-supplied power and power used by parts.
―  Supply of direct power from battery
―  Supply of power by switching ignition ON (engine off)
―  Supply of power by switching ignition ON (engine on)

Specification

Component parts

Specification
Main fuse
DCDC fuse rating
80 A
FAN fuse rating
80 A
MAIN fuse rating
200 A
DCDC fuse rating
200 A
ALT/ST fuse rating
200 A

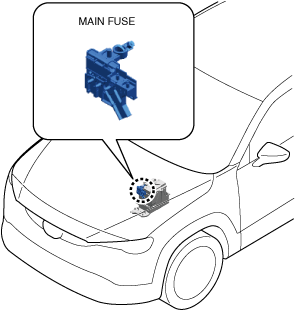

Structural view

a30zzn00001658
