INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY

id092200701000

Replacement parts

Caution

•  If the instrument cluster is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the instrument cluster, perform the procedure on a workbench and clean cloth being careful not to drop it.

1.  Disconnect the connectors.

a30zzw00003932

2.  Remove the wiring harness from the instrument cluster hook.

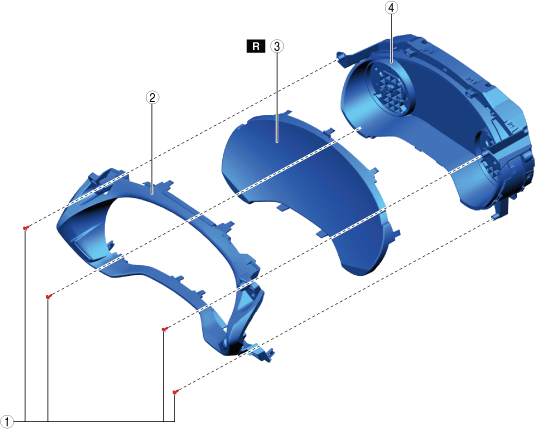

3.  Disassemble in the order shown in the figure.

a30zzw00003933

1	Screw
2	Meter cover
3	Lens
4	Instrument cluster

4.  Assemble in the reverse order of disassembly.
