HORN REMOVAL/INSTALLATION

id092200701300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

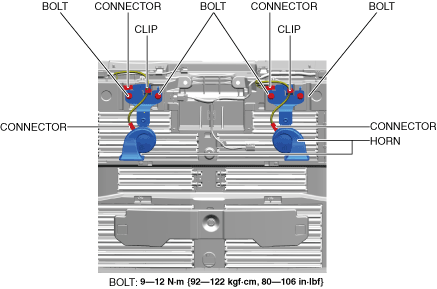

a30zzw00003939

4.  Remove the clips.

5.  Remove the bolts.

6.  Remove the horns.

7.  Install in the reverse order of removal.

8.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

9.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

10.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
