SPEEDOMETER

id092200703000

Purpose

• The speedometer notifies the driver of the speed at which the vehicle is traveling.

Functions

• The instrument cluster displays the current vehicle speed based on the vehicle speed signal from the electronically controlled brake unit.

Structure/Construction

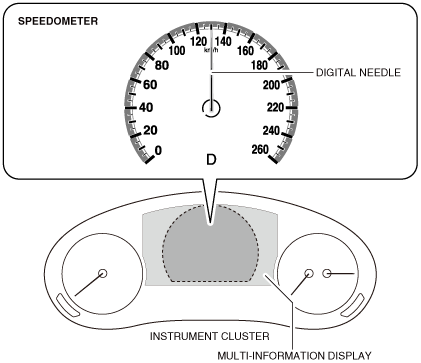

• A digital display speedometer has been adopted.

• The current vehicle speed is displayed in the multi-information display of the instrument cluster.

a30zzn00001745

Operation

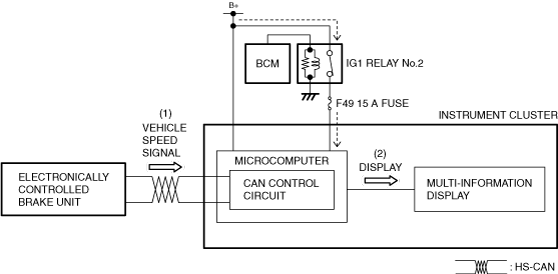

1. The instrument cluster displays (2) the current vehicle speed in the multi-information display when it receives (1) a vehicle speed signal via CAN communication from the electronically controlled brake unit with the ignition is switched ON (engine on).

a30zzn00002057
