FUEL GAUGE SENDER UNIT INSPECTION
id092200732600
Fuel Gauge Sender Unit (Main)
1. Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION".
(See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.0].)
2. If the fuel gauge level indicates 8/16 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel.
(See FUEL DRAINING PROCEDURE [SKYACTIV-G 2.0].)
3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
4. Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

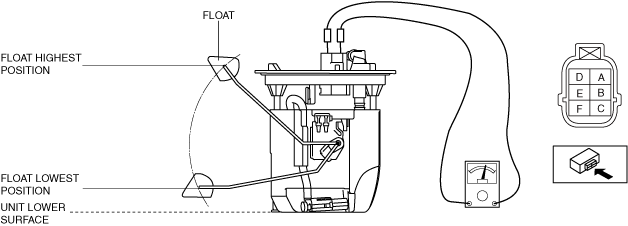

5. Verify that the resistance at fuel gauge sender unit terminals F and C is as follows according to the height of the float.
am3zzw00030141
|
Fuel Gauge Sender Unit [AWD (Sub)]
1. Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION".
(See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.0].)
2. If the fuel gauge level indicates 8/16 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel.
(See FUEL DRAINING PROCEDURE [SKYACTIV-G 2.0].)
3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
4. Remove the fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

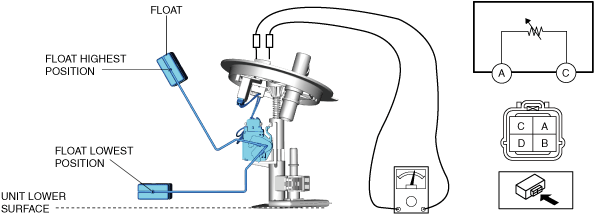

5. Verify that the resistance at fuel gauge sender unit terminals A and C is as follows according to the height of the float.
am3zzw00031701
|
