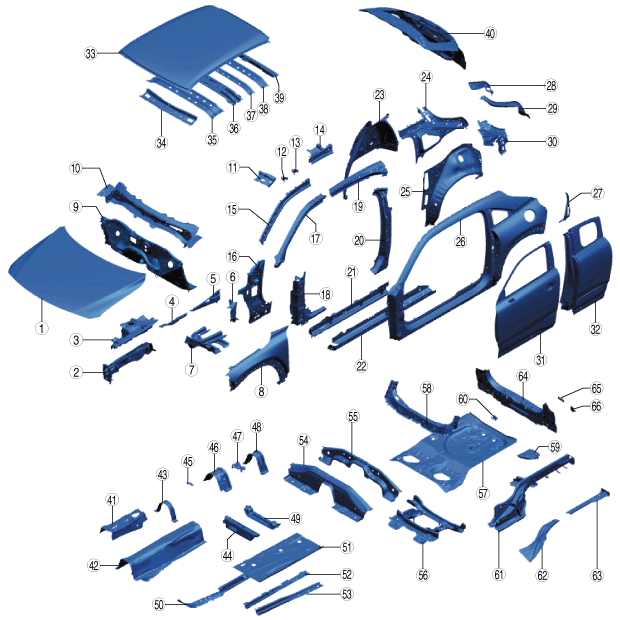

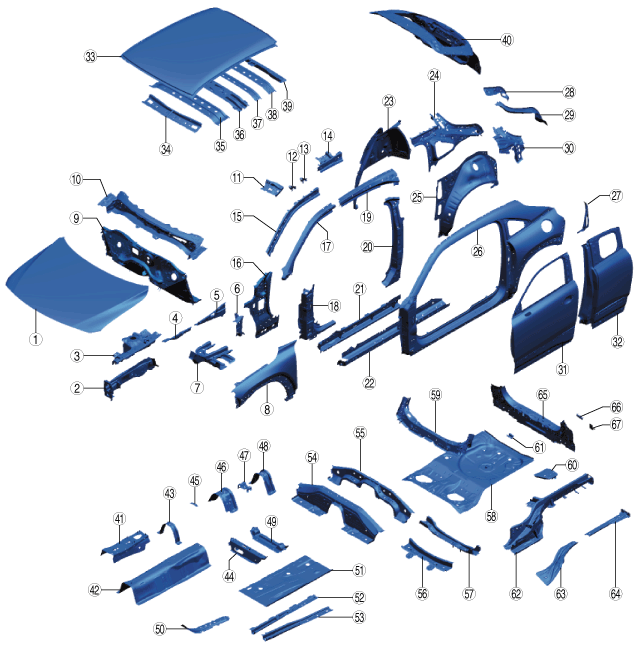

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


2WD

a30jjb00000115

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}

X:Applied

-:Not applied

Strength (MPa) {kgf/cm2, psi}

X:Applied

-:Not applied

X:Applied

-:Not applied
1
Hood (outer panel)
-
-
X
X
0.65 {0.0256}
2
Front side frame component
Bumper bracket
X
590 {6016, 85572}
-
-
2.60 {0.102}
Suspension mounting reinforcement
Inner
-
-
X
X
1.80 {0.0709}
Outer
-
-
X
X
1.80 {0.0709}
Front side frame (inner)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Light bracket
-
-
-
X
1.20 {0.0472}
Front side frame (outer)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Front frame (inner) reinforcement
-
-
-
-
1.60 {0.0630}
Front frame reinforcement (inner)
-
-
X
X
2.30 {0.0906}
Front frame reinforcement
-
-
-
X
1.60 {0.0630}
Reinforcement
-
-
X
X
2.00 {0.0787}
Frame gusset
-
-
-
X
1.60 {0.0630}
Brake hose bracket
-
-
-
-
3.60 {0.142}
3
Wheel apron component
Front wheel apron
-
-
-
X
1.20 {0.0472}
Front fender set bracket
-
-
-
X
0.80 {0.031}
Headlight bracket
-
-
-
X
0.60 {0.024}
Apron reinforcement (upper)
-
-
-
X
1.20 {0.0472}
Shroud upper reinforcement
-
-
X
X
0.90 {0.035}
Apron upper gusset No.1
-
-
-
X
0.80 {0.031}
Apron upper gusset No.2
-
-
-
X
0.80 {0.031}
Apron reinforcement
-
-
-
X
1.60 {0.0630}
Apron reinforcement No.3 (lower)
-
-
X
X
1.20 {0.0472}
Wheel apron reinforcement (rear)
-
-
-
X
1.00 {0.0394}
Wheel apron (front)
-
-
X
X
1.00 {0.0394}
Suspension housing reinforcement
X
590 {6016, 85572}
-
X
3.20 {0.126}
Wiring harness bracket
-
-
-
X
1.20 {0.0472}
Suspension housing (upper)
-
-
X
X
2.00 {0.0787}
Suspension housing (lower)
-
-
-
X
0.80 {0.031}
Wheel apron (rear) reinforcement
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Apron reinforcement No.3 (upper)
-
-
-
X
1.00 {0.0394}
4
Apron reinforcement (lower, front)
-
-
-
X
0.80 {0.031}
5
Apron reinforcement (lower, rear)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
6
Cowl side reinforcement (rear)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
7
Front frame (rear) component
Front frame (rear)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Torque box
Front
-
-
X
X
1.40 {0.0551}
Rear
-
-
X
X
1.00 {0.0394}
Front B frame reinforcement
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Lower arm bracket
-
-
-
X
1.40 {0.0551}
8
Front fender panel
-
-
-
X
0.70 {0.028}
9
Dash lower panel component
Dash lower panel (front, lower)
-
-
X
X
1.20 {0.0472}
Dash lower panel (rear)
-
-
X
X
1.60 {0.0630}
Dash lower panel (front, upper)
-
-
X
X
1.00 {0.0394}
Dash lower panel B
X
780 {7954, 113130}
-
X
1.20 {0.0472}
Dash side reinforcement
-
-
X
X
1.20 {0.0472}
Dash panel bracket
-
-
-
-
1.00 {0.0394}
Dash lower member
-
-
-
X
1.20 {0.0472}
Pedal bracket
X
590 {6016, 85572}


1.20 {0.0472}
Rack mounting Bracket
-
-
-
X
0.80 {0.031}
Brake bracket
-
-
-
-
2.60 {0.102}
Heater bracket
-
-
-
-
1.00 {0.0394}
Tunnel junction No.1
-
-
-
X
1.00 {0.0394}
Dash lower reinforcement (Upper)
X
590 {6016, 85572}
-
-
0.80 {0.031}
Dash lower reinforcement (lower)
-
-
-
-
1.40 {0.0551}
10
Dash and cowl component
Dash upper panel
-
-
-
X
0.65 {0.0256}
Cowl upper plate (inner)
-
-
X
-
1.20 {0.0472}
Cowl gusset
-
-
-
X
0.50 {0.0197}
Step panel reinforcement
-
-
-
-
0.50 {0.0197}
Dash upper reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
Cowl upper plate
X
590 {6016, 85572}
-
X
2.30 {0.0906}
11
Front pillar upper reinforcement component
Front pillar reinforcement
Outer
X
780 {7954, 113130}
-

1.20 {0.0472}
Inner
-
-
-
-
0.70 {0.028}
Fixing plate
-
-
-
-
1.40 {0.0551}
12
Assist handle bracket (front, front)
-
-
-
-
1.20 {0.0472}
13
Assist handle bracket (front, rear)
-
-
-
-
1.20 {0.0472}
14
Roof rail inner component
Roof rail (inner)
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
Roof corner gusset (front)
X
590 {6016, 85572}
-
-
1.80 {0.0709}
Nut plate
-
-
-
-
2.00 {0.0787}
Striker reinforcement
X
780 {7954, 113130}
-
-
2.30 {0.0906}
Roof corner gusset (rear)
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
15
Front pillar (inner)
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
16
Hinge pillar (inner) component
Hinge pillar (inner)
X
1,180 {12032, 171145}
-
X
2.00 {0.0787}
Dashboard bracket No.1
X
590 {6016, 85572}
-
-
2.00 {0.0787}
Dashboard bracket No.2
-
-
-
-
1.00 {0.0394}
17
Front pillar reinforcement component
Front side reinforcement
X
1,500 {15296, 217557}
-
X
2.00 {0.0787}
Front pillar reinforcement
Inner, upper
X
1,500 {15296, 217557}
-
X
1.80 {0.0709}
Inner, lower
X
780 {7954, 113130}
-
-
1.00 {0.0394}
18
Hinge reinforcement component
Hinge reinforcement
X
1,180 {12032, 171145}
-
-
1.60 {0.0630}
Hinge pillar reinforcement
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
Hinge upper reinforcement
X
980 {9993, 142137}
-
-
1.40 {0.0551}
Hinge lower reinforcement
X
980 {9993, 142137}
-
-
1.40 {0.0551}
Checker reinforcement
X
1,180 {12032, 171145}
-
-
1.40 {0.0551}
Hinge lower gusset
X
980 {9993, 142137}
-
-
1.40 {0.0551}
Front fender set bracket
-
-
-
-
1.00 {0.0394}
19
Roof rail reinforcement component
Roof rail reinforcement
X
1,500 {15296, 217557}
-
X
1.40 {0.0551}
Roof rail reinforcement inner
X
1,500 {15296, 217557}
-
X
1.20 {0.0472}
Roof rail gusset
-
-
-
-
0.80 {0.031}
20
C-pllar reinforcement (front) component
C-pillar reinforcement (front)
Outer
X
590 {6016, 85572}
-
-
0.90 {0.035}
Inner
-
-
-
-
0.70 {0.028}
Hinge reinforcement (Rear)
X
590 {6016, 85572}
-
-
2.00 {0.0787}
21
Side sill (inner) component
Side sill (inner)
Front
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Rear
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement
Front
-
-
-
X
1.80 {0.0709}
Rear
X
980 {9993, 142137}
-
-
2.00 {0.0787}
Upper
-
-
-
-
1.60 {0.0630}
Inner
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
No.1
-
-
-
X
1.00 {0.0394}
No.2
-
-
-
X
1.20 {0.0472}
No.3
-
-
-
X
1.00 {0.0394}
Reinforcement
-
-
-
-
1.60 {0.0630}
Side sill gusset
X
780 {7954, 113130}
-
-
1.80 {0.0709}
22
Side sill reinforcement component
Side sill reinforcement
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement gusset
No.1
X
980 {9993, 142137}
-
-
1.20 {0.0472}
No.2
X
980 {9993, 142137}
-
-
1.20 {0.0472}
No.3
X
980 {9993, 142137}
-
-
1.20 {0.0472}
Side sill reinforcement (center)
X
980 {9993, 142137}
-
-
1.20 {0.0472}
Side sill reinforcement (inner)
X
980 {9993, 142137}
-
X
1.20 {0.0472}
Side sill reinforcement (front)
Inner
X
1,180 {12032, 171145}
-
-
1.40 {0.0551}
Outer
-
-
-
X
1.00 {0.0394}
23
Wheel housing (inner) component
Wheel housing (inner)
-
-
-
X
0.65 {0.0256}
Suspension housing (upper)
-
-
X
X
2.60 {0.102}
Trunk side gusset
-
-
-
-
0.80 {0.031}
Rear side air bag bracket
-
-
-
-
1.00 {0.0394}
Rear mudguard bracket
-
-
-
X
1.20 {0.0472}
Seal plate
-
-
X
X
1.00 {0.0394}
Side brace
-
-
-
-
1.40 {0.0551}
Link bracket
-
-
-
-
0.70 {0.028}
24
Rear pillar (inner) component
Roof rail (inner, rear)
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Assist handle bracket (rear)
-
-
-
-
1.20 {0.0472}
Roof rack bracket
-
-
-
-
1.20 {0.0472}
Rear pillar (inner)
-
-
-
X
0.65 {0.0256}
Rear side panel
-
-
-
X
0.60 {0.024}
Corner reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Corner (upper) plate
-
-
-
-
1.40 {0.0551}
Corner junction
-
-
-
X
0.65 {0.0256}
25
Rear pillar (inner)
-
-
-
X
0.60 {0.024}
26
Cabin side frame (outer) component
Cabin side frame (outer)
-
-
-
X
0.65 {0.0256}
Striker reinforcement
X
780 {7954, 113130}
-
-
1.60 {0.0630}
Nut plate
-
-
-
-
2.30 {0.0906}
27
Rear fender (lower) panel
-
-
-
X
0.65 {0.0256}
28
D pillar reinforcement
-
-
-
X
0.65 {0.0256}
29
Rear pillar (outer) component
Rear pillar (outer)
-
-
-
X
0.65 {0.0256}
Corner plate
-
-
-
X
0.65 {0.0256}
30
C pillar reinforcement (rear) component
C pillar reinforcement (rear)
-
-
-
-
1.00 {0.0394}
Roof rail reinforcement (rear)
X
780 {7954, 113130}
-
-
0.90 {0.035}
D pillar reinforcement
-
-
-
-
0.90 {0.035}
31
Front door (outer) panel
-
-
-
X
0.70 {0.028}
32
Rear door (outer) panel
-
-
-
X
0.70 {0.028}
33
Roof panel
-
-
-
-
0.70 {0.028}
34
Front header component
Front header
X
780 {7954, 113130}
-
-
1.40 {0.0551}
Front header reinforcement
-
-
-
-
0.70 {0.028}
35
Roof reinforcement No.1
-
-
-
-
0.50 {0.0197}
36
Roof reinforcement No.2 component
Roof reinforcement No.2
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Closing plate
-
-
-
-
0.50 {0.0197}
37
Roof reinforcement No.3
X
590 {6016, 85572}
-
-
1.00 {0.0394}
38
Roof reinforcement No.4
X
590 {6016, 85572}
-
-
1.00 {0.0394}
39
Rear header component
Rear header
Upper
-
-
-
-
0.60 {0.024}
Lower
-
-
-
X
0.70 {0.028}
Liftgate hinge reinforcement
-
-
-
-
1.40 {0.0551}
40
Liftgate (outer) panel
-
-
-
X
0.70 {0.028}
41
Dashboard bracket component
Dashboard bracket
X
590 {6016, 85572}
-
-
0.90 {0.035}
Center console bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
42
Tunnel reinforcement (front)
X
590 {6016, 85572}
-
X
0.90 {0.035}
43
Crossmember No.2 reinforcement
-
-
-
X
0.70 {0.028}
44
Crossmember No.2 component
Crossmember No.2
X
1,310 {13358, 190000}
-
-
1.00 {0.0394}
Crossmember gusset
-
-
-
-
0.90 {0.035}
Seat bracket reinforcement
X
780 {7954, 113130}
-
-
2.00 {0.0787}
Seat anchor plate
-
-
X
-
2.00 {0.0787}
45
C unit bracket
-
-

-
0.70 {0.028}
46
Tunnel reinforcement No.2 component
Tunnel reinforcement No.2
-
-
X
X
1.40 {0.0551}
No.2 mounting bracket
-
-
-
X
2.30 {0.0906}
Mounting bracket
-
-
-
-
2.60 {0.102}
Silencer bracket
-
-
X
X
1.60 {0.0630}
47
Anchor reinforcement
-
-
-
-
0.80 {0.031}
48
Tunnel reinforcement No.2.5
-
-
-
X
0.70 {0.028}
49
Crossmember No.2.5 component
Crossmember No.2.5
X
1,180 {12032, 171145}
-
-
1.00 {0.0394}
Front seat bracket
Center
-
-
-
-
2.00 {0.0787}
Side
-
-
-
-
2.30 {0.0906}
50
Floor reinforcement component
Floor reinforcement
Front
X
1,500 {15296, 217557}

X
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
-
0.90 {0.035}
51
Front floor panel
X
590 {6016, 85572}
-
X
0.65 {0.0256}
52
Tunnel reinforcement component
No.2 mounting reinforcement
-
-
-
X
0.70 {0.028}
No.2 mounting bracket
-
-
-
X
0.70 {0.028}
Tunnel reinforcement
X
780 {7954, 113130}
-
X
0.80 {0.031}
53
Front B frame component
Front B frame
X
980 {9993, 142137}
-
X
1.00 {0.0394}
B frame (outer) reinforcement
-
-
-
X
2.90 {0.114}
54
Crossmember No.3 (front) component
Crossmember No.3
X
590 {6016, 85572}
-
X
0.80 {0.031}
Crossmember No.3
Center
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Side
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Crossmember No.3 reinforcement (center, front)
-
-
-
X
1.20 {0.0472}
Crossmember No.3 reinforcement (center)
X
590 {6016, 85572}
-
X
0.80 {0.031}
Reinforcement
-
-
-
X
0.60 {0.024}
55
Crossmember No.3 (rear) component
Crossmember No.3 (rear)
-
-
-
X
0.60 {0.024}
Tank bracket
-
-
X
X
1.80 {0.0709}
Crossmember No.3 (rear) gusset
-
-
-
X
0.60 {0.024}
56
Crossmember No.4.5 component
Crossmember No.4 (lower)
-
-
X
X
1.20 {0.0472}
Crossmember No.4 (lower) reinforcement
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Anchor reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
57
Rear floor panel component
Crossmember No.4.5
-
-
-
X
0.60 {0.024}
Crossmember No.4.5 gusset
-
-
X
X
1.00 {0.0394}
58
Rear floor panel component
Rear floor panel
-
-
-
X
0.60 {0.024}
Spare wheel bracket
-
-
-
-
1.00 {0.0394}
59
Crossmember No.4 (upper) component
Crossmember No.4 (upper)
-
-
X
-
0.90 {0.035}
Rear seat hinge reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Anchor reinforcement
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Brace reinforcement (front)
-
-
-
-
2.30 {0.0906}
Brace reinforcement (rear)
-
-
-
-
0.90 {0.035}
60
Floor side panel No.2
-
-
-
X
0.65 {0.0256}
61
Fuel tank bracket
-
-
-
X
1.00 {0.0394}
62
Rear side frame component
Rear side frame
Front
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Center
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Hose bracket
-
-
-
-
3.60 {0.142}
Reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Crossmember No.4 junction
-
-
-
X
1.60 {0.0630}
Crossmember No.4 junction
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Suspension housing reinforcement
-
-
-
X
1.80 {0.0709}
Rear frame (inner) gusset
-
-
-
X
0.90 {0.035}
Rear bumper bracket
X
980 {9993, 142137}
-
X
2.30 {0.0906}
Rear side frame reinforcement
X
780 {7954, 113130}
-
X
1.00 {0.0394}
63
Rear side (upper) frame (front)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
64
Floor side panel No.1 component
Floor side panel No.1
X
590 {6016, 85572}
-
X
0.70 {0.028}
Rear bumper bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
65
Rear end panel component
Rear end panel
-
-
-
X
0.60 {0.024}
Light bracket
-
-
-
X
0.65 {0.0256}
Bumper bracket
Upper, center
-
-
-
X
1.00 {0.0394}
Upper, side
-
-
-
X
1.00 {0.0394}
Lower
-
-
-
X
0.70 {0.028}
lower
-
-
-
X
1.00 {0.0394}
Striker reinforcement
-
-
X
-
1.20 {0.0472}
Rear end member
Center
-
-
X
-
0.60 {0.024}
Side
-
-
-
-
1.20 {0.0472}
Rear end member reinforcement No.1
-
-
-
X
0.65 {0.0256}
Rear end member reinforcement No.2
-
-
-
-
1.00 {0.0394}
66
Rear end member reinforcement No.2
-
-
-
X
0.70 {0.028}
67
Rear bumper reinforcement
-
-
-
X
1.00 {0.0394}


AWD

a30jjb00000116

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}

X:Applied

-:Not applied

Strength (MPa) {kgf/cm2, psi}

X:Applied

-:Not applied

X:Applied

-:Not applied
1
Hood (outer panel)
-
-
X
X
0.65 {0.0256}
2
Front side frame component
Bumper bracket
X
590 {6016, 85572}
-
-
2.30 {0.0906}
Suspension mounting reinforcement
Inner
-
-
X
X
1.80 {0.0709}
Outer
-
-
X
X
1.80 {0.0709}
Front side frame (inner)
X
780 {7954, 113130}
-
X
1.40 {0.0551}
Light bracket
-
-
-
X
1.20 {0.0472}
Front side frame (outer)
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Front frame (inner) reinforcement
-
-
-
-
1.60 {0.0630}
Front frame reinforcement (inner)
-
-
X
X
2.30 {0.0906}
Front frame reinforcement
-
-
-
X
1.60 {0.0630}
Reinforcement
-
-
X
X
2.00 {0.0787}
Frame gusset
-
-
-
X
1.60 {0.0630}
Brake hose bracket
-
-
-
-
3.60 {0.142}
3
Wheel apron component
Front wheel apron
-
-
-
X
1.20 {0.0472}
Front fender set bracket
-
-
-
X
0.80 {0.031}
Headlight bracket
-
-
-
X
0.60 {0.024}
Apron reinforcement (upper)
-
-
-
X
1.20 {0.0472}
Shroud upper reinforcement
-
-
X
X
0.90 {0.035}
Apron upper gusset No.1
-
-
-
X
0.80 {0.031}
Apron upper gusset No.2
-
-
-
X
0.80 {0.031}
Apron reinforcement
-
-
-
X
1.60 {0.0630}
Apron reinforcement No.3 (lower)
-
-
X
X
1.20 {0.0472}
Wheel apron reinforcement (rear)
-
-
-
X
1.00 {0.0394}
Wheel apron (front)
-
-
X
X
1.00 {0.0394}
Suspension housing reinforcement
X
590 {6016, 85572}
-
X
3.20 {0.126}
Wiring harness bracket
-
-
-
X
1.20 {0.0472}
Suspension housing (upper)
-
-
X
X
2.00 {0.0787}
Suspension housing (lower)
-
-
-
X
0.80 {0.031}
Wheel apron (rear) reinforcement
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Apron reinforcement No.3 (upper)
-
-
-
X
1.00 {0.0394}
4
Apron reinforcement (lower, front)
-
-
-
X
0.80 {0.031}
5
Apron reinforcement (lower, rear)
X
780 {7954, 113130}
-
X
1.60 {0.0630}
6
Cowl side reinforcement (rear)
X
780 {7954, 113130}
-
X
1.80 {0.0709}
7
Front frame (rear) component
Front frame (rear)
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Torque box
Front
-
-
X
X
1.40 {0.0551}
Rear
-
-
X
X
1.00 {0.0394}
Front B frame reinforcement
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Lower arm bracket
-
-
-
X
1.40 {0.0551}
8
Front fender panel
-
-
-
X
0.70 {0.028}
9
Dash lower panel component
Dash lower panel (front, lower)
-
-
X
X
1.20 {0.0472}
Dash lower panel (rear)
-
-
X
X
1.60 {0.0630}
Dash lower panel (front, upper)
-
-
X
X
1.00 {0.0394}
Dash lower panel B
X
780 {7954, 113130}

X
1.20 {0.0472}
Dash side reinforcement
-
-
X
X
1.20 {0.0472}
Dash panel bracket
-
-
-
-
1.00 {0.0394}
Dash lower member
-
-
-
X
1.20 {0.0472}
Pedal bracket
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Rack mounting Bracket
-
-
-
X
0.80 {0.031}
Brake bracket
-
-
-
-
2.60 {0.102}
Heater bracket
-
-
-
-
1.00 {0.0394}
Tunnel junction No.1
-
-
-
X
1.00 {0.0394}
Dash lower reinforcement (Upper)
X
590 {6016, 85572}
-
-
0.80 {0.031}
Dash lower reinforcement (lower)
-
-
-
-
1.40 {0.0551}
10
Dash and cowl component
Dash upper panel
-
-
-
X
0.65 {0.0256}
Cowl upper plate (inner)
-
-
X
-
1.20 {0.0472}
Cowl gusset
-
-
-
X
0.50 {0.0197}
Step panel reinforcement
-
-
-
-
0.50 {0.0197}
Dash upper reinforcement
X
590 {6016, 85572}
-
X
1.80 {0.0709}
Cowl upper plate
X
590 {6016, 85572}
-
X
2.30 {0.0906}
11
Front pillar upper reinforcement component
Front pillar reinforcement
Outer
X
780 {7954, 113130}
-
-
1.20 {0.0472}
Inner
-
-
-
-
0.70 {0.028}
Fixing plate
-
-
-
-
1.40 {0.0551}
12
Assist handle bracket (front, front)
-
-
-
-
1.20 {0.0472}
13
Assist handle bracket (front, rear)
-
-
-
-
1.20 {0.0472}
14
Roof rail inner component
Roof rail (inner)
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
Roof corner gusset (front)
X
590 {6016, 85572}
-
-
1.80 {0.0709}
Nut plate
-
-
-
-
2.00 {0.0787}
Striker reinforcement
X
590 {6016, 85572}
-
-
1.80 {0.0709}
Roof corner gusset (rear)
X
780 {7954, 113130}
-
-
2.30 {0.0906}
15
Front pillar (inner)
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
16
Hinge pillar (inner) component
Hinge pillar (inner)
X
1,180 {12032, 171145}
-
X
2.00 {0.0787}
Dashboard bracket No.1
X
590 {6016, 85572}
-
-
2.00 {0.0787}
Dashboard bracket No.2
-
-
-
-
1.00 {0.0394}
17
Front pillar reinforcement component
Front side reinforcement
X
1,500 {15296, 217557}
-
X
2.00 {0.0787}
Front pillar reinforcement
Inner, upper
X
1,500 {15296, 217557}
-
X
1.80 {0.0709}
Inner, lower
X
780 {7954, 113130}
-
-
1.00 {0.0394}
18
Hinge reinforcement component
Hinge reinforcement
X
1,180 {12032, 171145}
-
-
1.60 {0.0630}
Hinge pillar reinforcement
X
1,180 {12032, 171145}
-
-
2.00 {0.0787}
Hinge upper reinforcement
X
980 {9993, 142137}
-
-
1.40 {0.0551}
Hinge lower reinforcement
X
980 {9993, 142137}
-
-
1.40 {0.0551}
Checker reinforcement
X
1,180 {12032, 171145}
-
-
1.40 {0.0551}
Hinge lower gusset
X
980 {9993, 142137}
-
-
1.40 {0.0551}
Front fender set bracket
-
-
-
-
1.00 {0.0394}
19
Roof rail reinforcement component
Roof rail reinforcement
X
1,500 {15296, 217557}
-
X
1.40 {0.0551}
Roof rail reinforcement inner
X
1,500 {15296, 217557}
-
X
1.20 {0.0472}
Roof rail gusset
-
-
-
-
0.80 {0.031}
20
C-pllar reinforcement (front) component
C-pillar reinforcement (front)
Outer
X
590 {6016, 85572}
-
-
0.90 {0.035}
Inner
-
-
-
-
0.70 {0.028}
Hinge reinforcement (Rear)
X
590 {6016, 85572}
-
-
2.00 {0.0787}
21
Side sill (inner) component
Side sill (inner)
Front
X
780 {7954, 113130}
-
X
1.80 {0.0709}
Rear
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement
Front
-
-
-
X
1.80 {0.0709}
Rear
X
980 {9993, 142137}
-
-
2.00 {0.0787}
Upper
-
-
-
-
1.60 {0.0630}
Inner
X
1,310 {13358, 190000}
-
-
1.80 {0.0709}
No.1
-
-
-
X
1.00 {0.0394}
No.2
-
-
-
X
1.20 {0.0472}
No.3
-
-
-
X
1.00 {0.0394}
Reinforcement
-
-
-
-
1.60 {0.0630}
Side sill gusset
X
780 {7954, 113130}
-
-
1.80 {0.0709}
22
Side sill reinforcement component
Side sill reinforcement
X
1,180 {12032, 171145}
-
X
1.40 {0.0551}
Side sill reinforcement gusset
No.1
X
980 {9993, 142137}
-
-
1.20 {0.0472}
No.2
X
980 {9993, 142137}
-
-
1.20 {0.0472}
No.3
X
980 {9993, 142137}
-
-
1.20 {0.0472}
Side sill reinforcement (center)
X
980 {9993, 142137}
-
-
1.20 {0.0472}
Side sill reinforcement (inner)
X
980 {9993, 142137}
-
X
1.20 {0.0472}
Side sill reinforcement (front)
Inner
X
1,180 {12032, 171145}
-
-
1.40 {0.0551}
Outer
-
-
-
X
1.00 {0.0394}
23
Wheel housing (inner) component
Wheel housing (inner)
-
-
-
X
0.65 {0.0256}
Suspension housing (upper)
-
-
X
X
2.60 {0.102}
Trunk side gusset
-
-
-
-
0.80 {0.031}
Rear side air bag bracket
-
-
-
-
1.00 {0.0394}
Rear mudguard bracket
-
-
-
X
1.20 {0.0472}
Seal plate
-
-
X
X
1.00 {0.0394}
Side brace
-
-
-
-
1.40 {0.0551}
Link bracket
-
-
-
-
0.70 {0.028}
24
Rear pillar (inner) component
Roof rail (inner, rear)
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Assist handle bracket (rear)
-
-
-
-
1.20 {0.0472}
Roof rack bracket
-
-
-
-
1.20 {0.0472}
Rear pillar (inner)
-
-
-
X
0.65 {0.0256}
Rear side panel
-
-
-
X
0.60 {0.024}
Corner reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Corner (upper) plate
-
-
-
-
1.40 {0.0551}
Corner junction
-
-
-
X
0.65 {0.0256}
25
Rear pillar (inner)
-
-
-
X
0.60 {0.024}
26
Cabin side frame (outer) component
Cabin side frame (outer)
-
-
-
X
0.65 {0.0256}
Striker reinforcement
X
780 {7954, 113130}
-
-
1.60 {0.0630}
Nut plate
-
-
-
-
2.30 {0.0906}
27
Rear fender (lower) panel
-
-
-
X
0.65 {0.0256}
28
D pillar reinforcement
-
-
-
X
0.65 {0.0256}
29
Rear pillar (outer) component
Rear pillar (outer)
-
-
-
X
0.65 {0.0256}
Corner plate
-
-
-
X
0.65 {0.0256}
30
C pillar reinforcement (rear) component
C pillar reinforcement (rear)
-
-
-
-
1.00 {0.0394}
Roof rail reinforcement (rear)
X
780 {7954, 113130}
-
-
0.90 {0.035}
D pillar reinforcement
-
-
-
-
0.90 {0.035}
31
Front door (outer) panel
-
-
-
X
0.70 {0.028}
32
Rear door (outer) panel
-
-
-
X
0.70 {0.028}
33
Roof panel
-
-
-
-
0.70 {0.028}
34
Front header component
Front header
X
780 {7954, 113130}
-
-
1.40 {0.0551}
Front header reinforcement
-
-
-
-
0.70 {0.028}
35
Roof reinforcement No.1
-
-
-
-
0.50 {0.0197}
36
Roof reinforcement No.2 component
Roof reinforcement No.2
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Closing plate
-
-
-
-
0.50 {0.0197}
37
Roof reinforcement No.3
X
590 {6016, 85572}
-
-
1.00 {0.0394}
38
Roof reinforcement No.4
X
590 {6016, 85572}
-
-
1.00 {0.0394}
39
Rear header component
Rear header
Upper
-
-
-
-
0.60 {0.024}
Lower
-
-
-
X
0.70 {0.028}
Liftgate hinge reinforcement
-
-
-
-
1.40 {0.0551}
40
Liftgate (outer) panel
-
-
-
X
0.70 {0.028}
41
Dashboard bracket component
Dashboard bracket
X
590 {6016, 85572}
-
-
0.90 {0.035}
Center console bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
42
Tunnel reinforcement (front)
X
590 {6016, 85572}
-
X
0.90 {0.035}
43
Crossmember No.2 reinforcement
-
-
-
X
0.70 {0.028}
44
Crossmember No.2 component
Crossmember No.2
X
1,310 {13358, 190000}
-
-
1.00 {0.0394}
Crossmember gusset
-
-
-
-
0.90 {0.035}
Seat bracket reinforcement
X
780 {7954, 113130}
-
-
2.00 {0.0787}
Seat anchor plate
-
-
X
-
2.00 {0.0787}
45
C unit bracket
-
-
-
-
0.70 {0.028}
46
Tunnel reinforcement No.2 component
Tunnel reinforcement No.2
-
-
X
X
1.40 {0.0551}
No.2 mounting bracket
-
-
-
X
2.30 {0.0906}
Mounting bracket
-
-
-
-
2.60 {0.102}
Silencer bracket
-
-
X
X
1.60 {0.0630}
47
Anchor reinforcement
-
-
-
-
0.80 {0.031}
48
Tunnel reinforcement No.2.5
-
-
-
X
0.70 {0.028}
49
Crossmember No.2.5 component
Crossmember No.2.5
X
1,180 {12032, 171145}
-
-
1.00 {0.0394}
Front seat bracket
Center
-
-
-
-
2.00 {0.0787}
Side
-
-
-
-
2.30 {0.0906}
50
Floor reinforcement component
Floor reinforcement
Front
X
1,500 {15296, 217557}
-
X
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
-
0.90 {0.035}
51
Front floor panel
X
590 {6016, 85572}
-
X
0.65 {0.0256}
52
Tunnel reinforcement component
No.2 mounting reinforcement
-
-
-
X
0.70 {0.028}
No.2 mounting bracket
-
-
-
X
0.70 {0.028}
Tunnel reinforcement
X
780 {7954, 113130}
-
X
0.80 {0.031}
53
Front B frame component
Front B frame
X
980 {9993, 142137}
-
X
1.00 {0.0394}
B frame (outer) reinforcement
-
-
-
X
2.90 {0.114}
54
Crossmember No.3 (front) component
Crossmember No.3
X
590 {6016, 85572}
-
X
0.80 {0.031}
Crossmember No.3
Center
X
1,180 {12032, 171145}
-
-
1.20 {0.0472}
Side
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Crossmember No.3 reinforcement (center, front)
-
-
-
X
1.20 {0.0472}
Crossmember No.3 reinforcement (center)
X
590 {6016, 85572}
-
X
0.80 {0.031}
Reinforcement
X
1,180 {12032, 171145}
-
-
0.80 {0.031}
55
Crossmember No.3 (rear) component
Crossmember No.3 (rear)
-
-
-
X
0.60 {0.024}
Tank bracket
-
-
-
X
0.60 {0.024}
Crossmember No.3 (rear) gusset
-
-
X
X
1.80 {0.0709}
56
Crossmember No.4 (upper) component
Differential mounting member No.1
-
-
-
X
1.20 {0.0472}
Differential mounting member No.2
-
-
-
X
2.90 {0.114}
Crossmember No.4.5
-
-
-
X
1.20 {0.0472}
Crossmember reinforcement
-
-
-
X
2.90 {0.114}
Crossmember No.4.5 gusset
-
-
X
X
1.00 {0.0394}
Crossmember No.4 (lower)
X
590 {6016, 85572}
-
X
1.20 {0.0472}
Crossmember No.4 reinforcement
X
590 {6016, 85572}
-
X
2.30 {0.0906}
Fuel tank bracket
-
-
X
X
1.80 {0.0709}
57
Rear floor panel component
Rear floor panel
-
-
-
-
0.60 {0.024}
Spare wheel bracket
-
-
-
-
1.00 {0.0394}
58
Crossmember No.4 (upper) component
Crossmember No.4 (upper)
-
-
X
-
0.90 {0.035}
Rear seat hinge reinforcement
X
590 {6016, 85572}
-
-
1.20 {0.0472}
Anchor reinforcement
X
590 {6016, 85572}
-
-
1.60 {0.0630}
Brace reinforcement (front)
-
-
-
-
2.30 {0.0906}
Brace reinforcement (rear)
-
-
-
-
0.90 {0.035}
59
Floor side panel No.2
-
-
-
X
0.65 {0.0256}
60
Fuel tank bracket
-
-
-
X
1.00 {0.0394}
61
Rear side frame component
Rear side frame
Front
X
980 {9993, 142137}
-
X
1.80 {0.0709}
Center
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Rear
X
590 {6016, 85572}
-
X
1.40 {0.0551}
Hose bracket
-
-
-
-
3.60 {0.142}
Reinforcement
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Crossmember No.4 junction
X
590 {6016, 85572}
-
X
2.90 {0.114}
Crossmember No.4 junction
X
780 {7954, 113130}
-
X
1.60 {0.0630}
Suspension housing reinforcement
-
-
-
X
1.80 {0.0709}
Rear frame (inner) gusset
-
-
-
X
0.90 {0.035}
Rear bumper bracket
X
980 {9993, 142137}
-
X
2.30 {0.0906}
Rear side frame reinforcement
X
780 {7954, 113130}
-
X
1.00 {0.0394}
62
Rear side (upper) frame (front)
X
980 {9993, 142137}
-
-
1.80 {0.0709}
63
Floor side panel No.1 component
Floor side panel No.1
X
590 {6016, 85572}
-
X
0.70 {0.028}
Rear bumper bracket
X
590 {6016, 85572}
-
-
2.00 {0.0787}
64
Rear end panel component
Rear end panel
-
-
-
X
0.60 {0.024}
Light bracket
-
-
-
X
0.65 {0.0256}
Bumper bracket
Upper, center
-
-
-
X
1.00 {0.0394}
Upper, side
-
-
-
X
1.00 {0.0394}
Lower
-
-
-
X
0.70 {0.028}
lower
-
-
-
X
1.00 {0.0394}
Striker reinforcement
-
-
X
-
1.20 {0.0472}
Rear end member
Center
-
-
X
-
0.60 {0.024}
Side
-
-
-
-
1.20 {0.0472}
Rear end member reinforcement No.1
-
-
-
X
0.65 {0.0256}
Rear end member reinforcement No.2
-
-
-
-
1.00 {0.0394}
65
Rear end member reinforcement No.2
-
-
-
X
0.70 {0.028}
66
Rear bumper reinforcement
-
-
-
X
1.00 {0.0394}
