REAR FENDER LOWER PANEL REMOVAL [PANEL REPLACEMENT]

id098008614100

Symbol Mark

ac5uub00000086

Removal Procedure

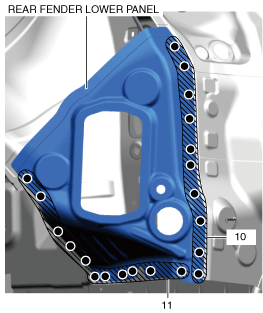

1.  Drill the spot welds in the 21 locations shown in the figure.

a30zzb00000061

2.  Remove the rear fender lower panel.
