REAR FENDER LOWER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008614200

Symbol Mark

ac5uub00000086

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

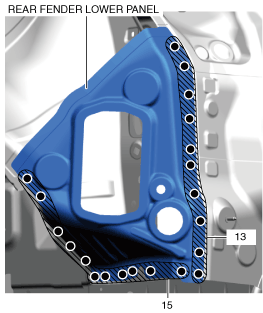

3.  Spot welds in the 28 locations shown in the figure and install the rear fender lower panel.

a30zzb00000180
