FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Drill the spot welds in the 11 locations in area A shown in the figure.

a30zzb00000075

2.  Remove the rear bumper bracket.

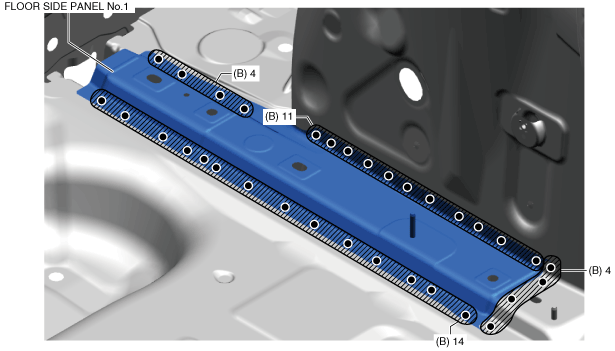

3.  Drill the spot welds in the 33 locations in area B shown in the figure.

a30zzb00000076

4.  Remove the floor side panel No.1.

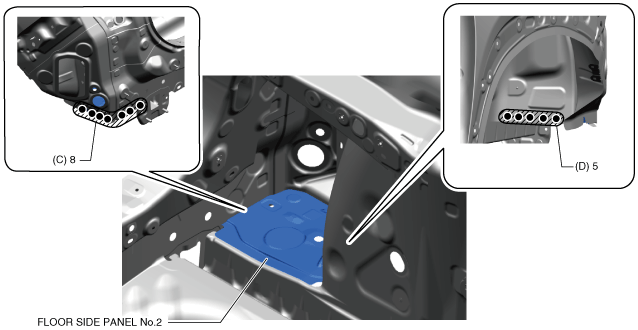

5.  Drill the spot welds in the 8 locations in area C shown in the figure.

6.  Drill the spot welds in the 5 locations in area D shown in the figure from the rear wheel housing.

a30zzb00000077

7.  Remove the floor side panel No.2.
