WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

a30zzb00000010

Removal Procedure

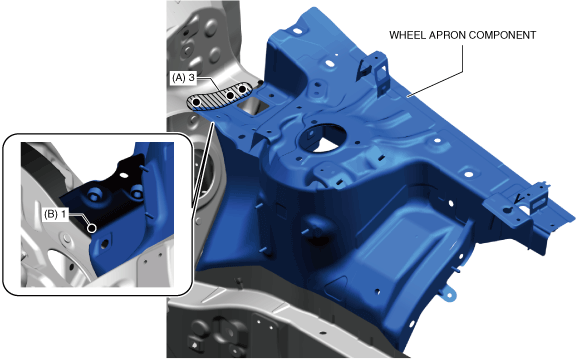

1.  Drill the spot welds in the 3 locations in area A shown in the figure from the engine compartment.

2.  Using a belt sander, grind the spot weld in the 1 location in area B shown in the figure from the engine compartment.

a30zzb00000011

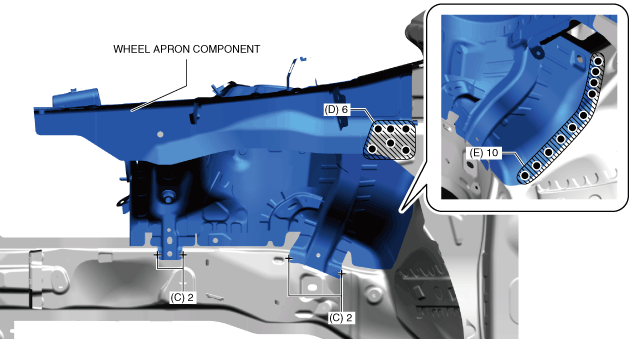

3.  Using a belt sander, grind the arc spot welds in the 4 locations in area C shown in the figure from the front wheel housing.

4.  Drill the spot welds in the 6 locations in area D shown in the figure from the front wheel housing.

5.  Drill the spot welds in the 10 locations in area E shown in the figure from the front wheel housing.

Note

•  When drilling the spot welds in the 10 locations in area E shown in the figure, do not drill through-holes in consideration of the workability when installing.

a30zzb00000012

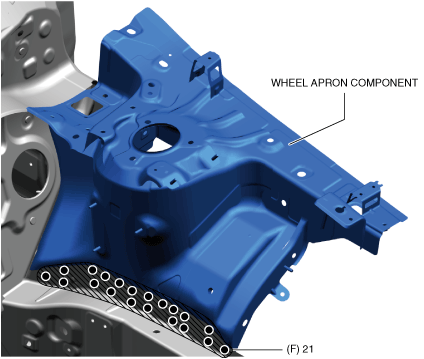

6.  Drill the spot welds in the 21 locations in area F shown in the figure from the engine compartment.

a30zzb00000013

7.  Remove the wheel apron component.
