FRONT FRAME (REAR) COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008752600

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Drill the spot welds in the 65 locations in area A shown in the figure from the interior.

a30zzb00000018

2.  Drill the spot welds in the 16 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 16 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

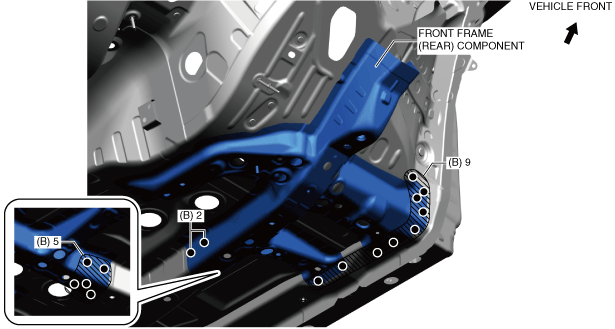

a30zzb00000019

3.  Remove the front frame (rear) component.
