APRON REINFORCEMENT (LOWER) (FRONT) REMOVAL [PANEL REPLACEMENT]

id098008760000

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Drill the spot welds in the 19 locations in area A shown in the figure.

2.  Drill the spot welds in the 4 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 4 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

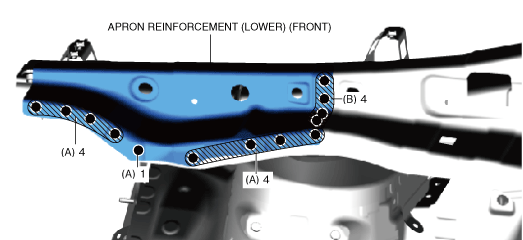

a30zzb00000221

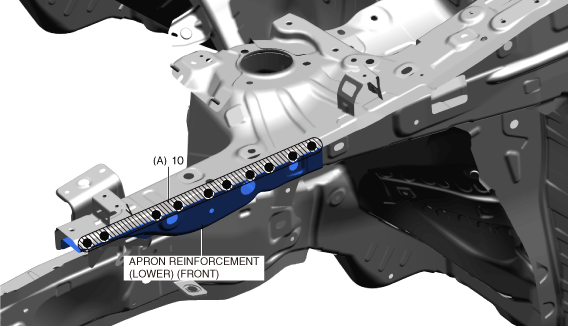

a30zzb00000222

3.  Remove the apron reinforcement (lower) (front).
