APRON REINFORCEMENT (UPPER) (PARTIAL CUTTING) INSTALLATION [PANEL REPLACEMENT]

id098008801100

Symbol Mark

a30zzb00000130

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

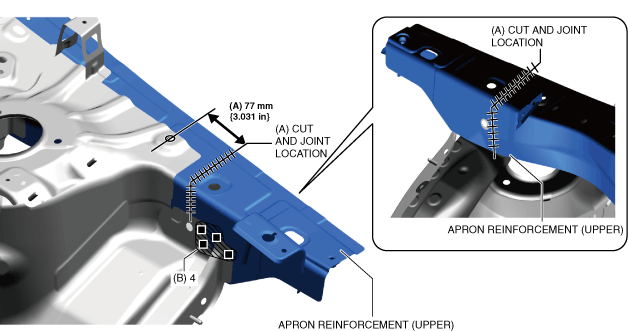

3.  Cut and join the location in area A shown in the figure and install the apron reinforcement (upper).

4.  Plug welds in the 4 locations in area B shown in the figure and install the apron reinforcement (upper).

a30zzb00000131

5.  Install the apron reinforcement (lower) (rear). (See APRON REINFORCEMENT (LOWER) (REAR) INSTALLATION [PANEL REPLACEMENT].)

6.  Install the apron reinforcement (lower) (front). (See APRON REINFORCEMENT (LOWER) (FRONT) INSTALLATION [PANEL REPLACEMENT].)

7.  Install the headlight bracket. (See HEADLIGHT BRACKET INSTALLATION [PANEL REPLACEMENT].)
