D-PILLAR REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008969500

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Drill the spot welds in the 16 locations shown in the figure.

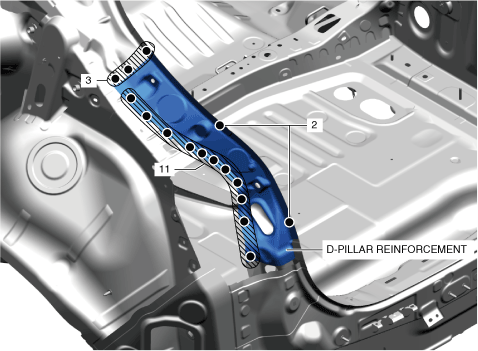

a30zzb00000072

2.  Remove the D-pillar reinforcement.
