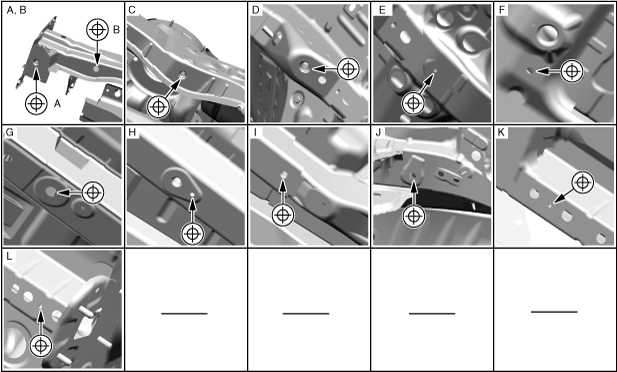

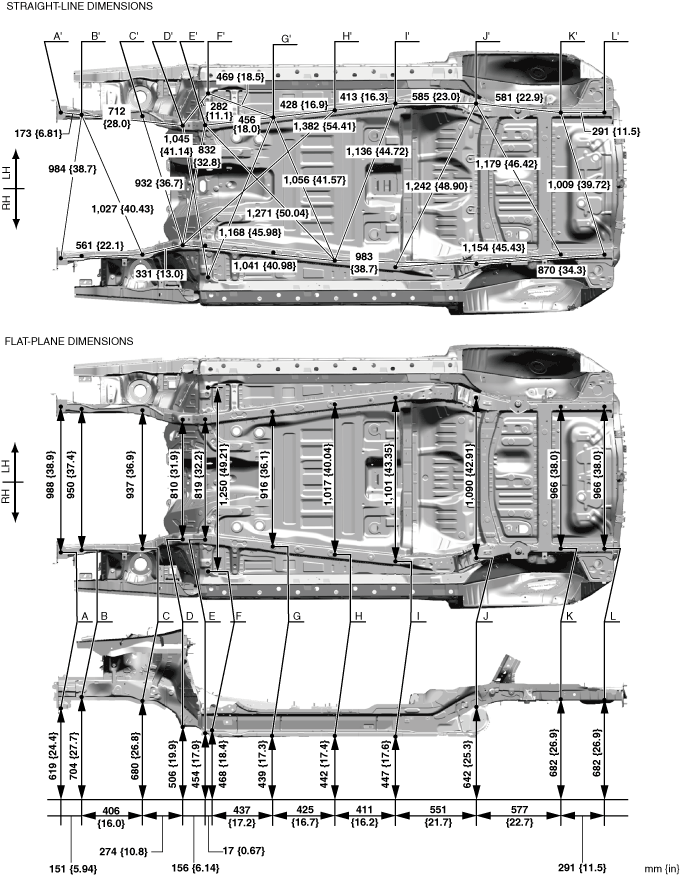

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front crossmember installation hole
|
φ12 {0.47}
|
|
B
|
Front side frame datum hole
|
φ16 {0.63}
|
|
C
|
Front crossmember installation hole
|
φ16 {0.63}
|
|
D
|
Front crossmember installation hole
|
φ16 {0.63}
|
|
E
|
Floor under cover No.1 installation hole
|
φ10 {0.39}
|
|
F
|
Floor under cover No.1 installation hole
|
φ8 {0.31}
|
|
G
|
Front B frame datum hole
|
φ16 {0.63}
|
|
H
|
Front B frame datum hole
|
φ7 {0.28}
|
|
I
|
Front B frame datum hole
|
φ16 {0.63}
|
|
J
|
Rear side frame datum hole
|
φ20 {0.79}
|
|
K
|
Rear under cover installation hole
|
φ7 {0.28}
|
|
L
|
Rear under cover installation hole
|
φ7 {0.28}
|
