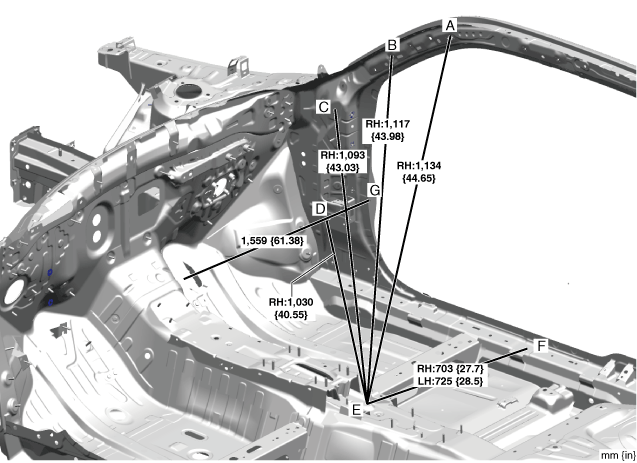

ROOM DIMENSIONS (1) [DIMENSIONS]
id098010990500
a30zzb00000253
|
a30jjb00000109
|

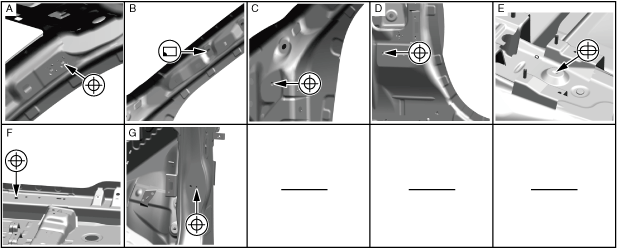

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
---|---|---|
A
|
Curtain air bag module installation nut
|
φ9 {0.35}
|
B
|
Washer hose clip installation square hole
|
9 X 10
{0.35 X 0.39}
|
C
|
Dash gusset component installation nut
|
φ12 {0.47}
|
D
|
Dash gusset component installation nut
|
φ12 {0.47}
|
E
|
Anchor reinforcement measurement hole
|
7 X 12{0.28 X 0.47}
|
F
|
Side sill (inner) panel datum hole
|
φ14 {0.55}
|
G
|
Front door checker installation hole
|
φ4 {0.2}
|
