CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]
id0980c0740300

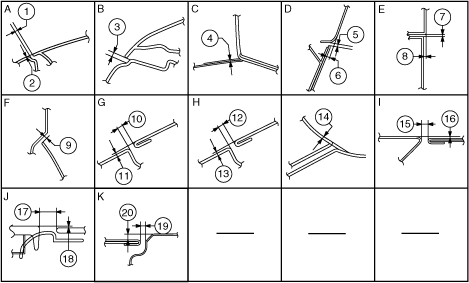

Front View
a30zzb00000042
|
a30zzb00000043
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Parallelism (mm {in}) |
|
|---|---|---|---|---|---|---|
|
A
|
1
|
3.5 {0.14}
|
5.3 {0.21}
|
1.7 {0.067}
|
2.0 {0.079}
|
|
|
2
|
0
|
2.0 {0.079}
|
-2.0 {-0.079}
|
-
|
||
|
B
|
3
|
7.8 {0.31}
|
9.7 {0.38}
|
5.9 {0.23}
|
-
|
|
|
C
|
4
|
1.8 {0.071}
|
3.3 {0.13}
|
0.3 {0.012}
|
-
|
|
|
D
|
5
|
1.8 {0.071}
|
3.1 {0.12}
|
0.5 {0.02}
|
-
|
|
|
6
|
0
|
1.3 {0.051}
|
-1.3 {-0.051}
|
-
|
||
|
E
|
7
|
0.5 {0.02}
|
1.3 {0.051}
|
0
|
-
|
|
|
8
|
-0.5 {-0.02}
|
0.2 {0.008}
|
-1.2 {-0.047}
|
-
|
||
|
F
|
9
|
0.5 {0.02}
|
0.8 {0.03}
|
0.5 {0.02}
|
-
|
|
|
G
|
10
|
3.2 {0.13}
|
4.2 {0.17}
|
2.7 {0.11}
|
1.0 {0.039}
|
|
|
11
|
0
|
1.0 {0.039}
|
-1.0 {-0.039}
|
-
|
||
|
H
|
12
|
3.9 {0.15}
|
4.9 {0.19}
|
2.9 {0.11}
|
1.0 {0.039}
|
|
|
13
|
0
|
1.0 {0.039}
|
-1.0 {-0.039}
|
-
|
||
|
14
|
0
|
1.5 {0.059}
|
-1.5 {-0.059}
|
-
|
||
|
I
|
15
|
3.3 {0.13}
|
4.3 {0.16}
|
2.6 {0.10}
|
1.0 {0.039}
|
|
|
16
|
0
|
0.7 {0.03}
|
-1.0 {-0.039}
|
-
|
||
|
J
|
17
|
4.6 {0.18}
|
6.6 {0.26}
|
2.6 {0.10}
|
2.0 {0.079}
|
|
|
18
|
0
|
2.0 {0.079}
|
-2.0 {-0.079}
|
-
|
||
|
K
|
19
|
4.0 {0.16}
|
5.0 {0.20}
|
3.0 {0.12}
|
1.0 {0.039}
|
|
|
20
|
0
|
1.0 {0.039}
|
-1.0 {-0.039}
|
-
|
||

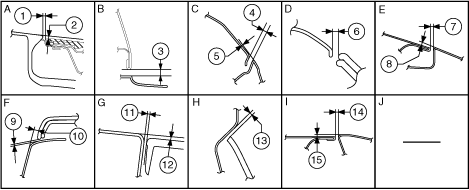

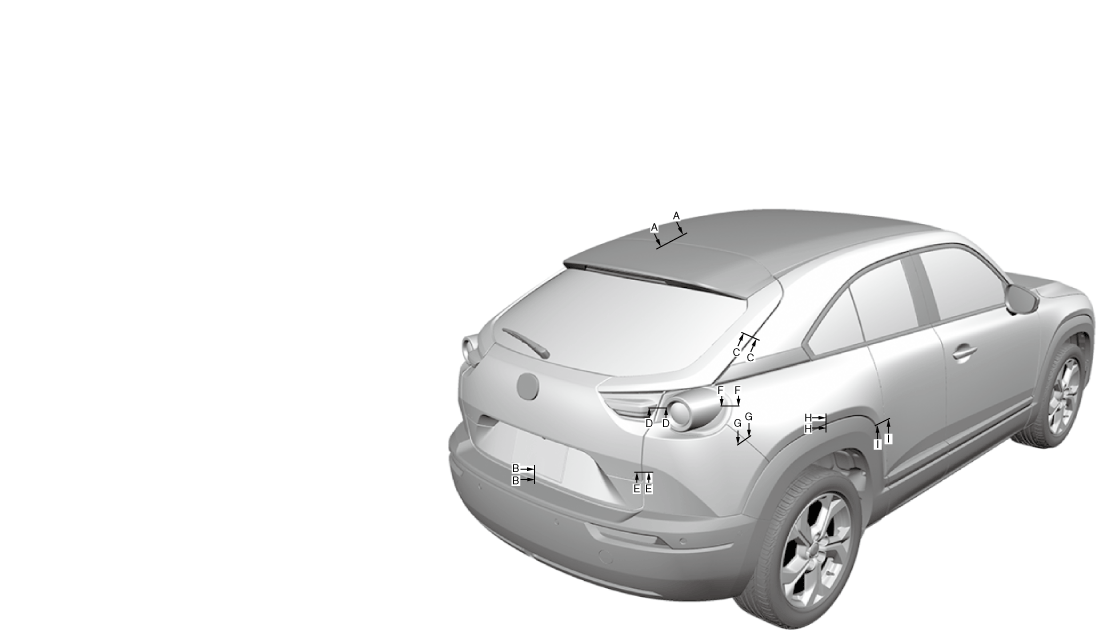

Rear View
a30zzb00000256
|
a30zzb00000045
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Parallelism (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
6.0 {0.24}
|
7.5 {0.30}
|
4.5 {0.18}
|
1.6 {0.063}
|
|
2
|
-1.1 {-0.043}
|
0.4 {0.016}
|
-2.6 {-0.10}
|
-
|
|
|
B
|
3
|
6.0 {0.24}
|
8.0 {0.31}
|
4.0 {0.16}
|
2.0 {0.079}
|
|
C
|
4
|
4.5 {0.18}
|
6.4 {0.25}
|
2.6 {0.10}
|
1.9 {0.075}
|
|
5
|
0.2 {0.008}
|
2.1 {0.083}
|
-1.7 {-0.067}
|
-
|
|
|
D
|
6
|
4.5 {0.18}
|
6.5 {0.26}
|
2.5 {0.098}
|
2.0 {0.079}
|
|
E
|
7
|
4.5 {0.18}
|
6.8 {0.27}
|
2.2 {0.087}
|
2.3 {0.091}
|
|
8
|
-1.0 {-0.039}
|
1.4 {0.055}
|
-3.4 {-0.13}
|
-
|
|
|
F
|
9
|
1.6 {0.063}
|
2.8 {0.11}
|
0.6 {0.024}
|
1.2 {0.047}
|
|
10
|
1.8 {0.071}
|
3.0 {0.12}
|
0.6 {0.024}
|
-
|
|
|
G
|
11
|
0.5 {0.02}
|
1.3 {0.051}
|
0.3 {0.012}
|
0.8 {0.03}
|
|
12
|
-0.5 {-0.02}
|
0.2 {0.008}
|
-1.2 {-0.047}
|
-
|
|
|
H
|
13
|
0.5 {0.02}
|
0.8 {0.03}
|
0.5 {0.02}
|
-
|
|
I
|
14
|
4.2 {0.17}
|
5.2 {0.20}
|
3.2 {0.13}
|
1.0 {0.039}
|
|
15
|
0
|
1.0 {0.039}
|
-1.0 {-0.039}
|
-
|
