DETERMINING OPEN CIRCUIT LOCATION (CAN-BUS No.4)

id100200002900

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.)

•  If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

•  When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1.  Verify the CAN system-related module DTCs and the module displayed in red or blue on the M-MDS screen.

2.  Apply the communication error DTC and the module displayed in red or blue to the DTC output pattern and malfunctioning location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location.)

Note

•  The open circuit location can be determined by the DTC indicated in the DTC output pattern and malfunctioning location chart. DTCs not listed in the chart are not used for the determination of the open circuit location. (See DTC Output Pattern And Malfunctioning Location.)

•  The module may be displayed in red or blue on the M-MDS screen even if there is no malfunction depending on the vehicle specification.

3.  Inspect the possible cause and inspection item of the applicable malfunctioning part.

DTC Output Pattern And Malfunctioning Location

A

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Electrical supply unit (ESU) power supply voltage or body ground malfunction

•  Open circuit in wiring harness between electrical supply unit (ESU) and connectors C-50, C-51

•  Connectors C-50, C-51 malfunction

•  Electrical supply unit (ESU) malfunction

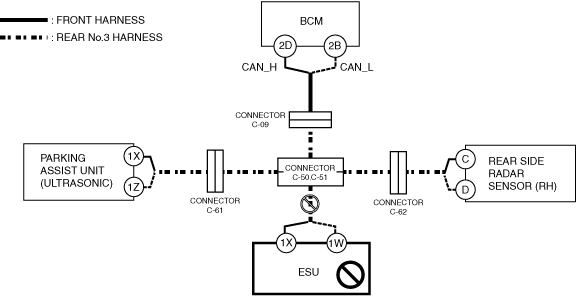

System wiring diagram

a30zzw00001162

Inspection item

•  Electrical supply unit (ESU) power supply voltage-related wiring harness and fuse

•  Electrical supply unit (ESU) body ground related wiring harness

•  Electrical supply unit (ESU) connector

•  Wiring harness between electrical supply unit (ESU) terminal 1X and connector C-50

•  Wiring harness between electrical supply unit (ESU) terminal 1W and connector C-51

•  Connectors C-50, C-51

•  Electrical supply unit (ESU)

B

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Rear side radar sensor (RH) power supply voltage or body ground malfunction

•  Open circuit in wiring harness between rear side radar sensor (RH) and connector C-62

•  Open circuit in wiring harness between connector C-62 and connectors C-50, C-51

•  Connector C-62 malfunction

•  Connectors C-50, C-51 malfunction

•  Rear side radar sensor (RH) malfunction

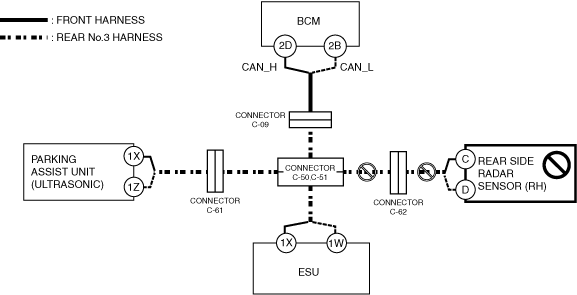

System wiring diagram

a30zzw00001161

Inspection item

•  Rear side radar sensor (RH) power supply voltage-related wiring harness and fuse

•  Rear side radar sensor (RH) body ground related wiring harness

•  Rear side radar sensor (RH) connector

•  Connector C-62

•  Connectors C-50, C-51

•  Wiring harness between rear side radar sensor (RH) terminal C and connector C-62

•  Wiring harness between rear side radar sensor (RH) terminal D and connector C-62

•  Wiring harness between connectors C-50, C-51 and connector C-62

•  Rear side radar sensor (RH)

C

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Parking assist unit (ultrasonic) power supply voltage or body ground malfunction

•  Open circuit in wiring harness between parking assist unit (ultrasonic) and connector C-61

•  Open circuit in wiring harness between connector C-61 and connectors C-50, C-51

•  Connector C-61 malfunction

•  Connectors C-50, C-51 malfunction

•  Parking assist unit (ultrasonic) malfunction

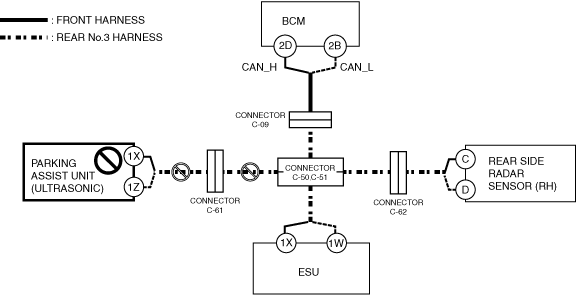

System wiring diagram

a30zzw00001160

Inspection item

•  Parking assist unit (ultrasonic) power supply voltage-related wiring harness and fuse

•  Parking assist unit (ultrasonic) body ground related wiring harness

•  Parking assist unit (ultrasonic) connector

•  Wiring harness between connector C-61 and connectors C-50, C-51

•  Wiring harness between parking assist unit (ultrasonic) terminal 1X and connector C-61

•  Wiring harness between parking assist unit (ultrasonic) terminal 1Z and connector C-61

•  Connector C-61

•  Connectors C-50, C-51

•  Parking assist unit (ultrasonic)

D

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Body control module (BCM) power supply voltage or body ground malfunction

•  Open circuit in wiring harness between body control module (BCM) and connector C-09

•  Open circuit in wiring harness between connector C-09 and connectors C-50, C-51

•  Connector C-09 malfunction

•  Connectors C-50, C-51 malfunction

•  Body control module (BCM) malfunction

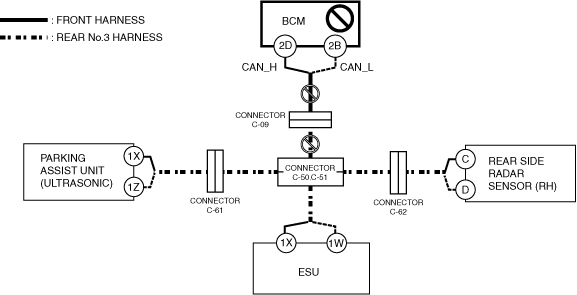

System wiring diagram

a30zzw00001159

Inspection item

•  Body control module (BCM) power supply voltage-related wiring harness and fuse

•  Body control module (BCM) body ground related wiring harness

•  Body control module (BCM) connector

•  Wiring harness between body control module (BCM) terminal 2D and connector C-09

•  Wiring harness between body control module (BCM) terminal 2B and connector C-09

•  Wiring harness between connector C-09 and connectors C-50, C-51

•  Connector C-09

•  Connectors C-50, C-51

•  Body control module (BCM)
