•  The adaptive LED headlight switch can be used by the driver to optionally switch the adaptive LED headlights between operational or non-operational.

•  The adaptive LED headlight switch sends a switch operation signal to the instrument cluster.

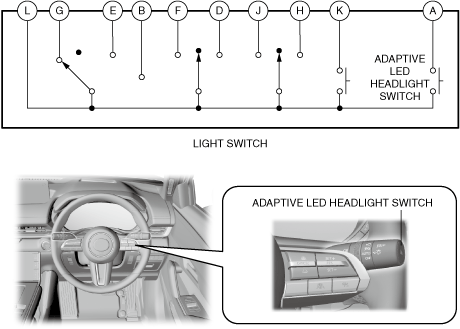

•  The adaptive LED headlight switch is built into the light switch.

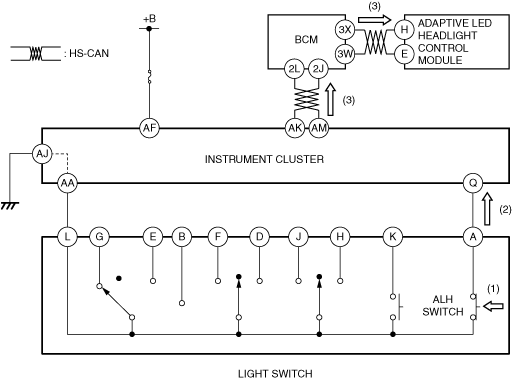

•  When the adaptive LED headlight switch is operated (1), the light switch outputs (2) the adaptive LED headlight switch operation voltage to the instrument cluster.

•  When the instrument cluster inputs the adaptive LED headlight switch operation voltage, it sends (3) an adaptive LED headlight switch operation signal to the adaptive LED headlight control module via the body control module (BCM) through CAN communication.

•  When the adaptive LED headlight control module receives the adaptive LED headlight switch operation signal from the instrument cluster, it switches the adaptive LED headlights on/off.
